Three phase voltage , current , power factor, power, energy calibrator
- DC/AC voltage
+ Summary range: 1 to 600 Vac, 1 to 280 Vdc
+ Voltage resolution: 5 dig.
+ Frequency range: DC, 15 Hz to 1000 Hz
+ Frequency uncertainty: 0.005%
+ Frequency resolution: 0.001 Hz below 500 Hz, 0.01 Hz below 1000 Hz
+ Distortion: < 0.05 %
- DC/AC current
+ Summary range: 8 mA to 30 A
+ Current resolution: 5 dig.
+ Frequency range: DC, 15 Hz to 1000 Hz
+ Frequency uncertainty: 0.005%
+ Frequency resolution: 0.001 Hz below 500 Hz, 0.01 Hz below 1000 Hz
+ Distortion: < 0.1 %
- Phase and power factor
+ Phase range: 0.0° to 359.99°
+ Frequency range: 15 Hz to 1000 Hz
+ Phase resolution: 0.01°
+ Power factor range: -1 to +1 (Lead, Lag)
+ Power factor resolultion: 0.001
- DC power
+ Summary range: 0.008W to 8400 W (420 kW with current coil option 140-50)
+ Power unit: W
- AC power
+ Summary range: 3x (0.008VA to 18 kVA (900 kVA with current coil option 140-50))
+ Frequency range: 15Hz to 1000 Hz
+ Power unit: W, VA, VAr
- DC/AC energy
+ Voltage range: 1 to 280 Vdc (600 Vac)
+ Current range: 8 mA to 30 A
+ Power factor range: - 1 to + 1
+Time range: 1 s to 10 000 s
+ Time resolution: 0.1 s
+ Time interval uncertainty: 0.01 % + 0.1 s
- Multimeter
+ DC voltage 0 to ±12 V / 0.01 % + 0.01 %
+ DC current 0 to ±25 mA/ 0.01 % + 0.01 %
+ Frequency 1 Hz to 15 kHz / 0.005 %
Dimensions: 500 x 520 x 430 mm
Netto weight: 59 kg
Power supply: 115/230V – 50/60 Hz
Power consumption: max. 1500 VA
Included:
Power cable 1 pc
Option 10 Test cable banana-banana 1m 1000V/32A black: 3 pcs
Option 11 Test cable banana-banana 1m 1000V/32A red: 3 pcs
Option 12 Test cable banana-banana 1m 1000V/32A blue: 3 pcs
Option 13 Test cable banana-banana 1m 1000V/32A yellow : 3 pcs
RS232 cable 1.5m: 1 pc
Spare fuse: 1 pc
Option 133-01 High current adapter: 1 pc
Operation manual, CD" 1 pc
Test report: 1 pc
Details
Datasheet
|

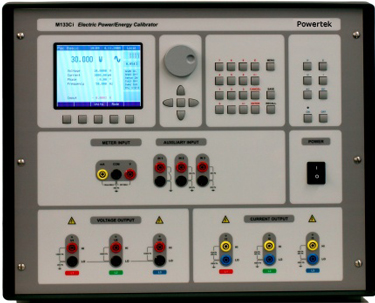

The MC133Ci model is a compact one-housing three phase electric power/energy calibrator. It can supply the device under test with one phase accurate AC voltage and current with calibrated phase shift or DC voltage and current. Output voltage can be set in five ranges up to 280V and output current in six ranges up to 30A.
Simulated electric power can be set independently in each phase. Frequency can be set in range from 15Hz to 1kHz with resolution 0.001Hz to 0.01Hz. Calibrator is equipped with 5 1/2 digital DC meter with DC ranges 20mA or 10V for direct calibrating of various types of power transducers.
Using supplied cable adapter the current outputs can be joined together offering one phase current range to 90A AC/DC.
MC133Ci offers only SINE wave output signals. Harmonic and inter-harmonic distortion is not available in this model.
|
|
|
|
|
|
General Technical Data
|
| Voltage range (sine mode) |
1V to 280V AC or DC |
| Current range (sine mode) |
8mA to 30A AC or DC |
| Resolution |
5 1/2 digit |
| Frequency range |
15Hz to 1000Hz |
| Frequency accuracy |
0.005% (for 50/60Hz synchronization to mains frequency can be set) |
| Frequency resolution |
0.001 Hz bellow 40Hz, 0.01Hz above 40Hz |
| Distortion of voltage output |
< 0.05% |
| Distortion of current output |
< 0.1% |
| Phase shift range |
0.000° to 359.99° |
| Power factor range |
-1.000 to +1.000 |
| Total electric power range |
0.03VA to 8400VA |
| Total electric energy range |
0.03VAs to 2333VAhr |
| Time interval range |
1s to 10000s |
| Time interval accuracy |
0.01% + 0.1s |
|
|
Specifications
|
| DC/AC Voltage (sine mode) |
| Range |
% of value
+
% of range
|
Max.
current
(mA)
|
% of value
+
% of range
|
Max.
current
(mA)
|
% of value
+
% of range
|
Max.
current
(mA) |
| |
DC
|
DC
|
15 - 40Hz
70 - 1000Hz
|
15 - 40Hz
400 - 1000Hz
|
40 - 70Hz
|
40 - 400Hz
|
|
1 - 10V
|
0.025 + 0.01
|
100
|
0.03 + 0.02
|
100
|
0.025 + 0.01
|
100
|
|
10 - 30V
|
0.025 + 0.01
|
200
|
0.03 + 0.02
|
200
|
0.025 + 0.01
|
200
|
|
30 - 70V
|
0.025 + 0.01
|
200
|
0.03 + 0.02
|
200
|
0.025 + 0.01
|
300
|
|
70 - 140V
|
0.025 + 0.01
|
200
|
0.03 + 0.02
|
200
|
0.025 + 0.01
|
300
|
|
140 - 280V
|
0.025 + 0.01
|
150
|
0.03 + 0.02
|
150
|
0.025 + 0.01
|
200
|
| DC/AC Current (sine mode) |
|
Range
|
% of value
+
% of range
|
Max.
voltage
(V)
|
% of value
+
% of range
|
% of value
+
% of range
|
Max.
voltage
(V)
|
Max.
voltage
(V)
|
| |
DC
|
DC
|
15 - 40Hz
70 - 1000Hz
|
40 - 70Hz
|
15 - 400Hz
|
400 - 1000Hz
|
|
8 - 300mA
|
0.03 + 0.01
|
8
|
0.04 + 0.02
|
0.03 + 0.01
|
5.5
|
3.5
|
|
0.3 - 1A
|
0.03 + 0.01
|
8
|
0.04 + 0.02
|
0.03 + 0.01
|
5.5
|
3.5
|
|
1 - 2A
|
0.03 + 0.01
|
8
|
0.04 + 0.02
|
0.03 + 0.01
|
5.5
|
3.5
|
|
2 - 5A
|
0.03 + 0.01
|
5
|
0.04 + 0.02
|
0.03 + 0.01
|
3.5
|
3.5
|
|
5 - 10A
|
0.035 + 0.015
|
5
|
0.05 + 0.02
|
0.035 + 0.015
|
3.5
|
3.5
|
|
10 - 30A
|
0.04 + 0.02
|
5
|
0.06 + 0.02
|
0.04 + 0.02
|
3.5
|
3.5
|
| Phase, power factor (sine mode) |
|
Frequency (Hz)
|
Accuracy degrees (°)
|
|
15 - 40Hz
|
0.1
|
|
40 - 70Hz
|
0.05
|
|
70 - 400Hz
|
0.1
|
|
400 - 1000Hz
|
0.4
|
|
| Accuracy of power factor: dPF = (1-cos(φ+dφ)/cos(φ) |
| DC/AC Power (sine mode) |
Accuracy of power is calculated from value of voltage, current and power factor. |
| |
Active power (W): dP = square root (dU2 + dI2 + dPF2 + 0.012) [%]
Reactive power (VAr): dP = square root (dU2 + dI2 + dPF*2 + 0.012) [%]
Apparent power (VA): dP = square root (dU2 + dI2 + 0.012) [%] |
| |
Where:
✓ dP is accuracy of power [%]
✓ dU is accuracy of voltage [%]
✓ dI is accuracy of current [%]
✓ dPF is accuracy of power factor (cos φ) [%]
✓ dPF* is accuracy of sin φ [%]
|
|
|
| Accessories (included): |
| Power cable |
1 pc |
| Option 10 Test cable banana-banana 1m 1000V/32A black |
3 pcs |
| Option 11 Test cable banana-banana 1m 1000V/32A red |
3 pcs |
| Option 12 Test cable banana-banana 1m 1000V/32A blue |
3 pcs |
| Option 13 Test cable banana-banana 1m 1000V/32A yellow |
3 pcs |
| RS232 cable 1.5m |
1 pc |
| Spare fuse |
1 pc |
| Option 133-01 High current adapter |
1 pc |
| Operation manual, CD |
1 pc |
| Test report |
1 pc |
|
| Options |
| Option 140-50 |
Current coil x25, x50 |
| Option 10 |
Test cable banana-banana 1000V/32A,1m,black |
| Option 11 |
Test cable banana-banana 1000V/32A,1m,red |
| Option 12 |
Test cable banana-banana 1000V/32A,1m,blue |
| Option 13 |
Test cable banana-banana 1000V/32A,1m,yellow |
| GPIB cable 2m |
Double shielded 2m IEEE488 cable |
| POWER |
Application SW for electric power transducers calibration |
|
