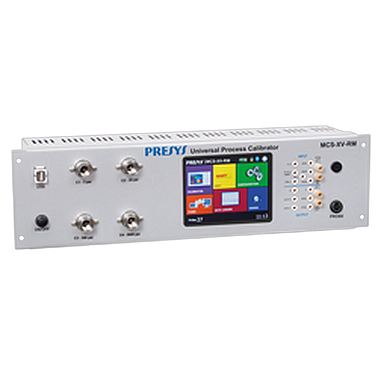

Measures and generates mA, mV, volts, ohms, RTD, TC and Hz.
Available and upgradeable with up to four pressure input sensors ranges from 250 mmH2O to 10,000 psi.
30 Vdc power supply for 2-wire transmitters.
Full colour touchscreen display provides easy-to-read data.
For use in 19" rack. Powered from 100 to 240 Vac, 50/60Hz.
Hart Full configurator (optional), which configures all available Hart® devices.
Data Logger function for data acquisition and graphical visualization.
Direct printing of calibration report (pass/fail) on connected USB printer or generation of PDF document, no need of extra computer.
Set up of automated calibration procedures and communication with calibration software.
Ethernet, Wi-Fi, Pen drive, Hart, USB connection Host / Device.
