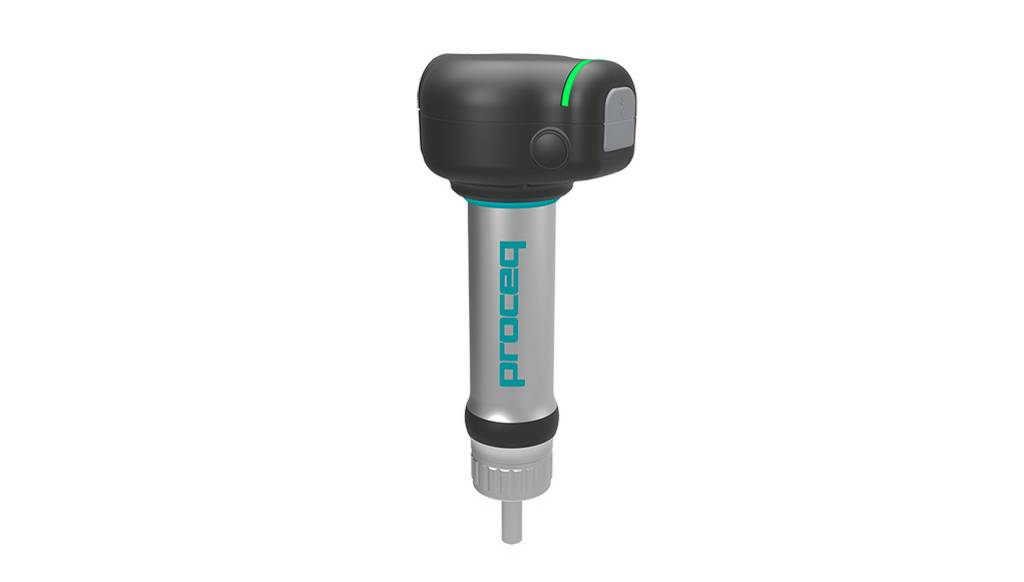

Proceq Equotip Live UCI Kit

Applications
- Standard to large objects
- Round objects
- Light objects
- Very hard objects
- Polished objects
- Heat treated surfaces
Native Scale : HV (UCI)
Measuring Range : 20 – 2000 HV
Measuring Accuracy : ± 2% (150 – 950 HV)
Available Scales : HB, HV, HLD, HRA, HRB, HRC, HR15N, HR15T, MPA
Available Probes : Universal probe with adjustable test load between HV1 and HV10
Average Roughness Ra (µm / µinch) : 12.5 / 500
Minimum Mass (kg / lbs) : 0.3 / 0.66
Minimum Thickness (mm / inch) : 5 / 0.2
PC Software : Webbrowser-based Equotip Live solution
Display: Any compatible Apple® iPad (iOS 8.0 and higher)
Memory : Memory of iOS device
Connections : USB for charging and updates
Standardization
- Standards
ASTM A 1038
ASTM E 140
DIN 50159
ISO 18265
- Guidelines
DGZfP Guideline MC 1
VDI / VDE Guideline 2616 Paper 1
ASME CRTD-91
