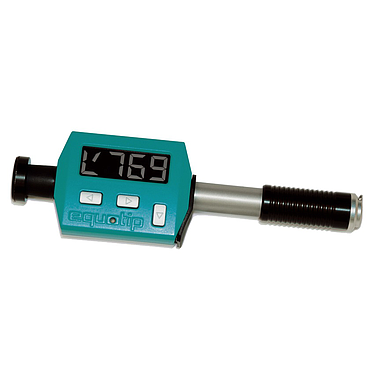

Proceq EQUOTIP Piccolo 2 硬度计金属检测 (连接电脑)

  • 制造商: PROCEQ
    Model: EQUOTIP Piccolo 2
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267






    The revolutionary portable metal hardness test of the Equotip Piccolo 2 convinces with precise measurements on most metals. It offers the same features as the Equotip Bambino 2 but also allows user defined hardness conversions, free Piccolink software for systematic real time monitoring of hardness, automated portable metal hardness test during serial production and full remote control of the Equotip Piccolo 2 settings. With this instrument for the portable metal hardness test customers can enjoy full bi-directional communication via USB interface and free online firmware updates.

    The DL Accessory Kit is used to extend the range of applications. It allows the portable metal hardness test in confined spaces and recessed surfaces through a long, slim testing nozzle

    Applications
    • On-site portable metal hardness test during production and processing
    • Excellent for material selection, acceptance and quality control tests, eg. in the automotive industry
    • Great also for production level portable metal hardness test on heavy and big parts
    • Handy for difficult to access or confined test locations, also curved sample surfaces
    • Archeological applications
    Technical Data
    Testing method Leeb rebound
    Impact energy 11 Nmm (Equotip D probe)
    Spherical test tip Tungsten carbide, 3 mm diameter
    Minimum radius of surface curvature 10 mm
    Testing range 150 - 950 HL
    Resolution 1 HL; 1 HV; 1 HB; 0.1 HRC; 0.1 HRB; 0.1 HS; 1 MPa (1 N/mm²)
    Accuracy ± 4 HL (0.5% at 800 HL)
    Dimensions 147.5 x 44 x 20 mm (5.71 x 1.75 x 0.79 in.)
    Weight 110 g
    Housing material scratch proofed anodized aluminum
    Display large, high contrast LCD
    Internal data storage 2000 readings (non-volatile memory)
    Communication USB, bidirectional, incl. remote control and operator lock through Piccolink software
    PC application Piccolink software included
    Battery Li ion, charges through device USB port, over 20,000 impacts on a full charge, intelligent wake-up/sleep mode
    Operating temperature -10 to +60 °C (14 to 140 °F)
    Humidity 90% max.



    Details

    Datasheet

    Manual
