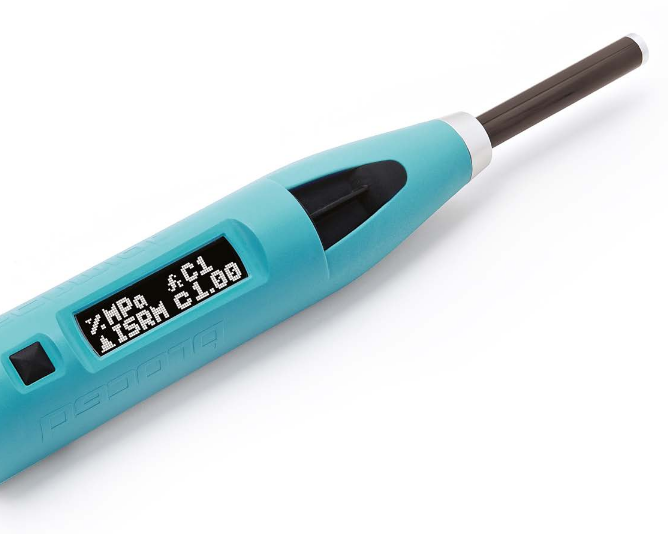

Proceq RockSchmidt L岩石测试锤(0.735 Nm)

  • 制造商: PROCEQ
    Model: RockSchmidtL
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Application
+ Geomorphological applications which investigate the bulk hardness properties of a rock outcrop
+ Prediction of weathering grades
+ Correlation to Unconfined (or Uniaxial) Compressive Strength (UCS)
+ Correlation to Young’s Modulus
+ Prediction of penetration rates for tunnel boring machines and rotary drum cutters
+ Testing on cores and blocks

Technical
Impact energy: 0.735 Nm
Spring extension: 75 mm (2.95")
Plunger radius: 25 mm (0.98"
Dimensions of housing: 55 x 55 x 250 mm (2.16" x 2.16" x 9.84")
Weight: 570 g
No. of impacts in a series: Maximum 99
Example: 400 series with 10 values per series
Example: 200 series with 20 values per series
Display: 17 x 71 pixels; graphic
Battery lifetime: >5000 impacts between charges
Charger connection: USB type B (5V, 100 mA)
Operating temperature: 0 to 50°C
Storage temperature: -10 to 70°C
Accessories: RockSchmidt Type L, including battery charger with USB cable, DVD with PC software, carrying strap, grinding stone, documentation and carrying bag

Details

Flyer

Manual
