Proceq Zonotip 超声波测厚仪




    Sales Flyer Zonotip

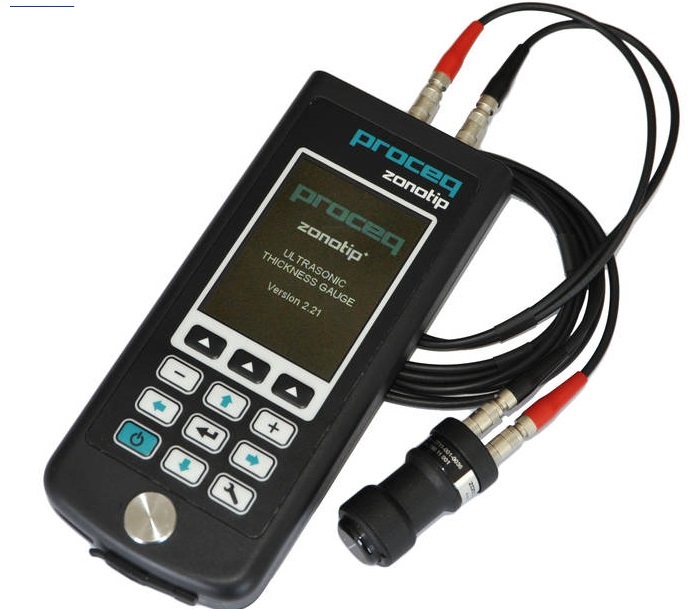

    The Zonotip is designed to measure the thickness of ferrous and non-ferrous metals as well as parts made from polymers, glass, ice, and other materials with a low ultrasonic attenuation. The product s measuring range on steel is from 0.7 to 300 mm. Two different probes are available: the standard dual-element 4.0 MHz transducer and the compact single-element 2.5 MHz transducer (only Zonotip+).The instrument can operate in three different modes (Norm, Memory, A-Scan), either displaying the current reading as digital numbers or as real-time graphical images (A-Scan – only Zonotip+).


    • Solid body of light, shock-proof plastic
    • Suitable for difficult weather conditions (frost- and heat-proof)
    • Large high-contrast color display ensures visual control of the inspection process
    • Memory for 50’000 measurements
    • 4.0 MHz dual-element transducer
    • Automatic adaptation to the surface curvature and roughness
    • Automatic logging of max and min values while scanning the object
    • Measuring of the ultrasonic pulse velocity on a sample with known thickness
    • Color, sound and vibration indication when set limits are exceeded
    • USB connection to PC for data transfer
    • 8 different languages selectable
    • Metric and imperial units
    • Signal strength indication
    • Battery level indication and automatic switch off function.

    Thickness measurements where only one-sided access is possible, such as


    The Zonotip Ultrasonic Thickness Gauge complies with the following standards:

    • ASTM E 797
    • EN 15317
    Technical Data


    Operating temperature -20 °C to 50 °C (-4 °F to 122 °F)
    Humidity up to 85% RH with a temperature of 25 °C (77 °F)
    Battery operation period 9h
    Power built-in LiPol accumulator
    Operation supply voltage 3.7 V

    157 x 70x 23 mm (6.1 x 2.7 x 0.9 inch)

    Weight 250 g
    Display type TFT
    Permissible surface roughness Rz160 / N12 / Ra = 50 µm
    Minimum curvature radius 10 mm (0.4 inch)
    Ultrasonic velocity range from 1000 to 9999 m/s
    Data memory 100 groups each max. 500 measurements
    Interface type USB
    Thickness resolution < 99.99 mm: 0.01 mm
    > 100.0 mm: 0.1 mm


    Type Dual-element Single-element (only Zonotip+)
    Frequency 4.0 MHz 2.5 MHz
    Measurement range (steel) 0.7 - 300 mm 0.7 - 300 mm
    Diameter of ultrasonic element 16 mm (0.6 inch) 10 mm (0.4 inch)
    Connector type LEMO type 00.250 LEMO type 00.250
    Size 45 x Ø23 mm (1.8 x Ø0.9 inch) 24 x Ø16 mm (0.9 x Ø0.6 inch)
    23g 16 g
