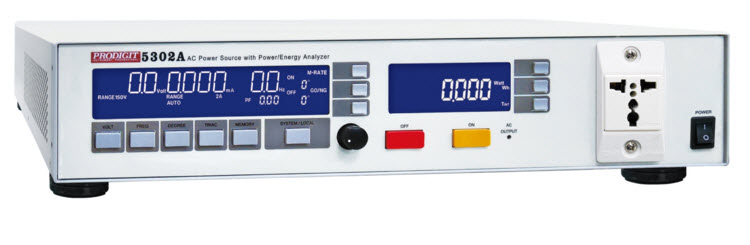

Prodigit 5302A 交流电源分析仪(270VA,1Ø)

  • 制造商: PRODIGIT
    Model: 5302A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Power: 270VAmax
Type: Linear
Voltage Rating: 50~150Vrms/160~305Vrms
  Accuracy: 0.2% ± 0.2% F.S.
  Resolution: 0.1V/0.2V
Distortion: THD≤0.5%(R load)
Load Regulation: ±0.5%±0.5V
Line Regulation: ±0.5%±0.5V
Current Rating: 2.0Arms/1.0Arms
Frequency: 40~70Hz
  Resolution: 0.1Hz
Triac Mode: Leading/Trailing Edge
  Range: 0~180º
  Resolution: 1º
Angle(ON/OFF): 0~360º
  Resolution: 1º
Protections: OCP,OTP,OPP,Short
Measurements:
ACV meter(Vrms): 150V/305V
  Resolution: 0.1V
  Accuracy: ±0.5%
ACA meter(Arms): 10mA/20mA/200mA/2000mA/200A
  Resolution: 0.01mA/0.01mA/0.1mA/1mA/0.1A
  Accuracy: ±0.5%/±2%
ACW meter: 1.5W/3W/6W/30W/60W/300W/600W
  Resolution: 0.001W/0.001W/0.001W/0.01W/0.01W/0.1W/0.1W
  Accuracy: ±0.5%
DCW meter: Same as 3310F series
PF meter: ±0.01~1.00
  Resolution: 0.01
  Accuracy: 1%
Frequency meter: 40~70Hz
  Resolution: 0.1Hz
  Accuracy: ±0.1Hz
Interface: RS-232
External AC Source: 300Vrms/2A/600VA
Input AC power: 115/230Vac, 50/60Hz
Cooling: Advanced Fan Cooled
