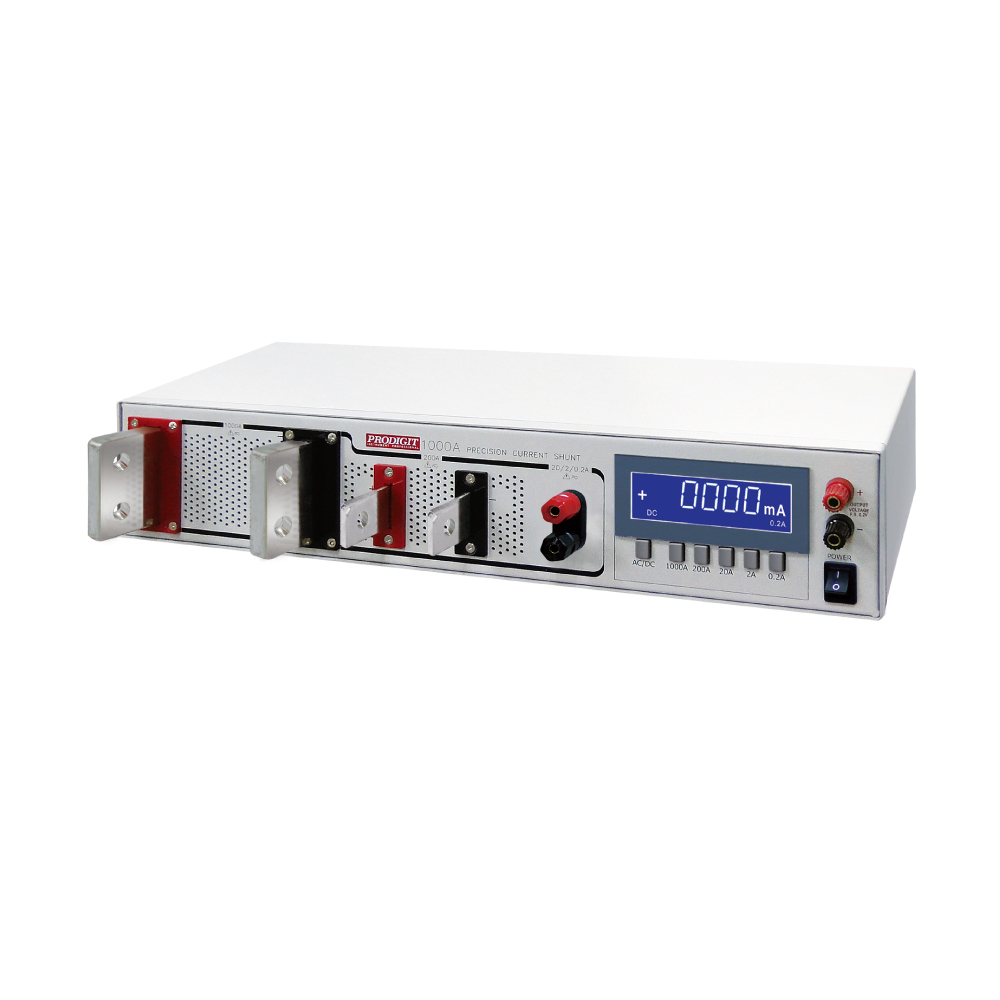

PRODIGIT 1000A-R Precision Current Shunt (1μA~1000A; Rear Input)

Range: 0.2A(max 0.4A)/2A(max 4A)/20A(max 30A)/200A(max 250A)/1000A(max 1000A)

Shunt Value: 1Ω/0.1Ω/0.01Ω/0.001Ω/0.0001Ω

DC Accuracy: 0.01% of Reading/0.01% of Reading/0.01% of Reading/0.02% of Reading/0.02% of Reading + 0.01% of Range

AC Accuracy:

  0.2A/2A/20A/200A: 0.1% of Reading

  1000A: 0.1% of Reading + Range (50~200Hz); 0.2% of Reading + Range (201~300Hz); 0.4% of Reading + Range (301~400Hz)

Output Voltage: 0.2A/0.2V, 2A/0.2V, 20A/0.2V, 200A/0.2V, 1000A/0.1V

5 1/2 Digit Ampere Meter:

  Range: 0.2A/2A/20A/200A/1000A

  Resolution: 0.001mA~199.999mA/200.00mA~400.00mA

                    0.01mA~1999.99mA/2000.0mA~4000.0mA

                    0.001A~19.9999A/20.000A~30.000A

                    0.001A~199.999A/200.00A~250.00A

                    0.01A~1000.00A

  DC Accuracy: 0.01% of Reading + 0.005% of Range/ 0.01% of Reading + 0.005% of Range/ 0.01% of Reading + 0.005% of Range/ 0.02% of Reading + 0.005% of Range/ 0.02% of Reading + 0.01% of Range

  AC Accuracy:

    0.2A/2A/20A/200A: 0.5% of Reading + 0.05% of Range

    1000A: 0.5% of Reading + 0.1% of Range (50~200Hz); 0.5% of Reading + 0.2% of Range (201~300Hz); 0.5% of Reading + 0.4% of Range (301~400Hz)

AC power: 115/230 Vac, 50/60Hz

Cooling: Force Fan Cooled

Weight: 13.5kg

Dimension: 440(W) x 88.9(H) x 410(D)mm

Optional interface: GPIB, RS232, USB, LAN
