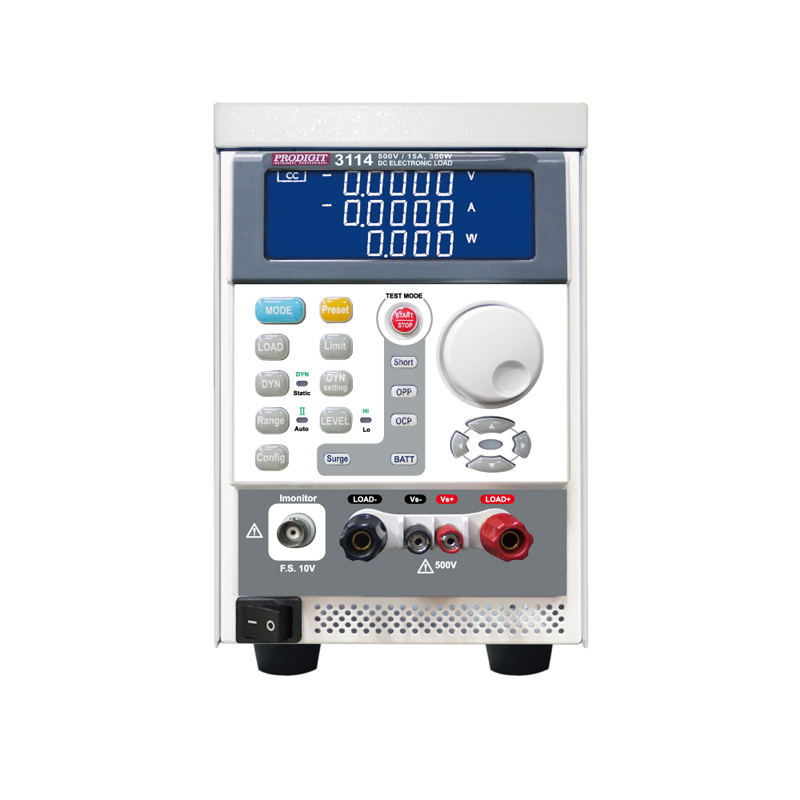

PRODIGIT 3114 DC Electronic Load (500V, 15A, 350W)

Max Power: 350 W

Max Current: 15 A

Operation Voltage: 500 V

Min. Operating Voltage: 6V at 15A

Protection: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp. Protection (OTP)

CC MODE Range: 0~1.5~15 A

CR MODE Range: 0.4~40~2400000Ω

CV MODE Range: 0~60~500 V

CP MODE Range: 0~35.04~350.4 W

Dynamic Operation: 10 μS to 9.999 Sec

Measurement:

- 5 1/2 DVM: 0~60~500 V

- 5 1/2 DAM: 0~1.5~15 A

Surge Test: 0~15A

Battery Discharge Test: 0~500V

Load ON Voltage: 0.4~100V

Load OFF Voltage: 0~100V

Imonitor (non-Isolated): 1.5 A/V

Typical Short Resistance: 0.367Ω

Max. short Current: 15A

Interface: USB / RS232

Power Comsumption: 40VA

Dimension(HxWxD): 205 x 123 x 477mm

Weight: 5.3Kg
