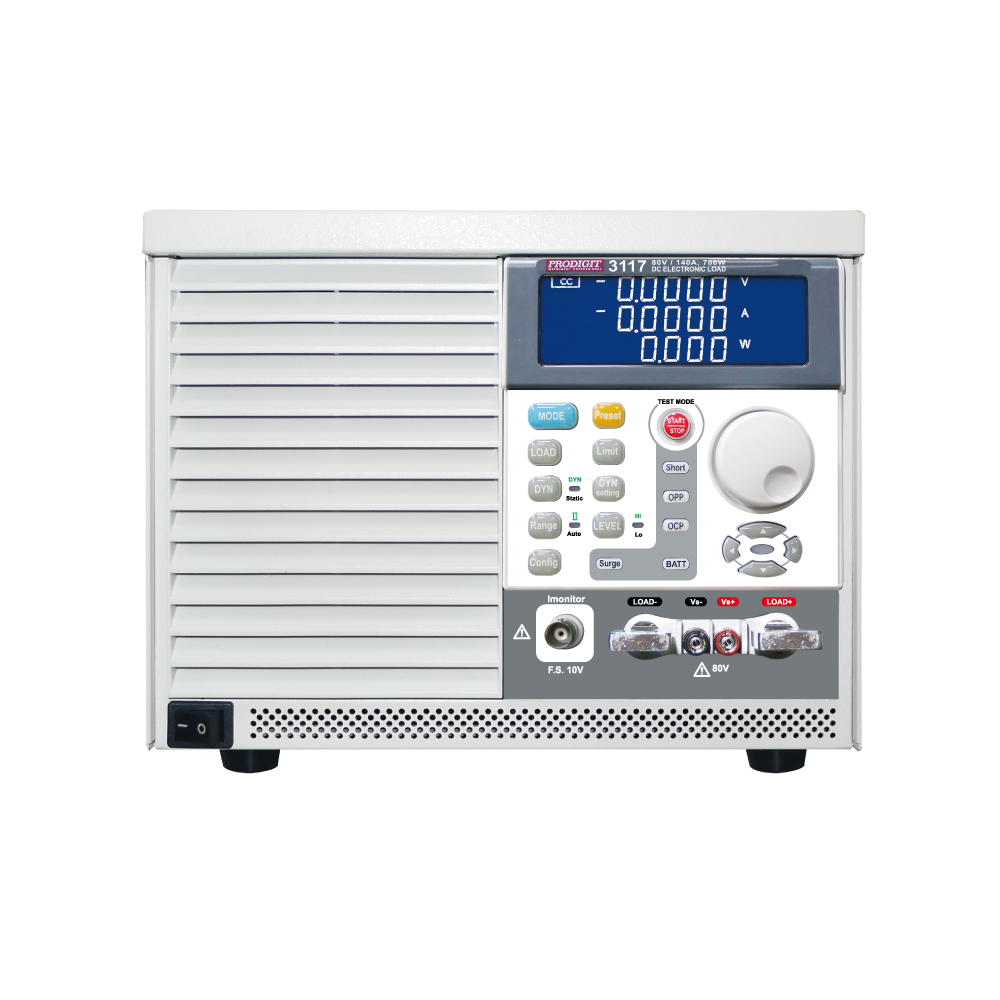

PRODIGIT 3117 直流电子负载 (80V, 140A, 700W)

Max Power: 700 W

Max Current: 140 A

Operation Voltage: 80 V

Min. Operating Voltage: 0.9V at 140A

Protection: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp. Protection (OTP)

CC MODE Range: 0~14.04~140.4 A

CR MODE Range: 0.0057~0.57~34200 Ω

CV MODE Range: 0∼8.1∼81 V

CP MODE Range: 0~70.02~700.2 W

Dynamic Operation: 10 μS to 9.999 Sec

Measurement:

- 5 1/2 DVM: 0∼8.1∼81 V

- 5 1/2 DAM: 0~14.04~140.4 A

Surge Test: 0~140A

Battery Discharge Test: 0~81V

Load ON Voltage: 0.1~25V

Load OFF Voltage: 0~25V

Imonitor (non-Isolated): 14.04 A/V

Typical Short Resistance: 0.0053Ω

Max. short Current: 140A

Interface: USB / RS232

Power Comsumption: 60VA

Dimension(HxWxD): 205 x 231 x 480mm

Weight: 10.3Kg
