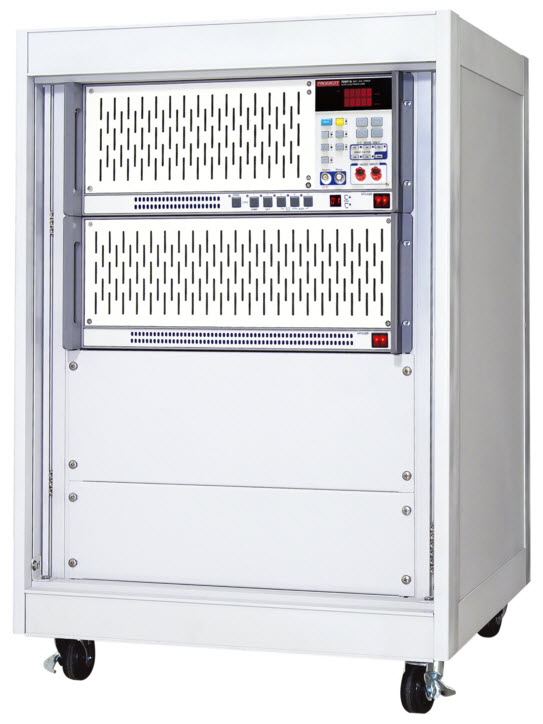

Prodigit 32601A 交/直流电子负载(2400VA,24Arms,300Vrms)

  • 制造商: PRODIGIT
    Model: 32601A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Power: 2400VA
Current: 24Arms
Voltage: 50~300Vrms
Protections:
  Over Power Protection: 2520VA
  Over Current Protection: 25.2A
  Over Voltage Protection: 315V
  Over Temp Protection: 85
CC mode:
  Range: 0~12A/12~24A
  Resolution: 3mA/6mA
  Accuracy: ±0.5%
  Low Current Accuracy: 0~1.2A
CR mode:
  Range: 2.5~10Ω/10~40KΩ
  Resolution: 0.1mS/0.025mΩ
  Accuracy: ±0.5%
Measurement mode (Load):
  Voltage: 300V, ±0.5%
  Current : 24A, ±0.5%
  Power : 2400W, ±0.5%
Dimension (HxWxD): 596x889x600mm
Weight: 77 kg
Input: 115/230Vac, 50/60Hz

Details

Datasheet
