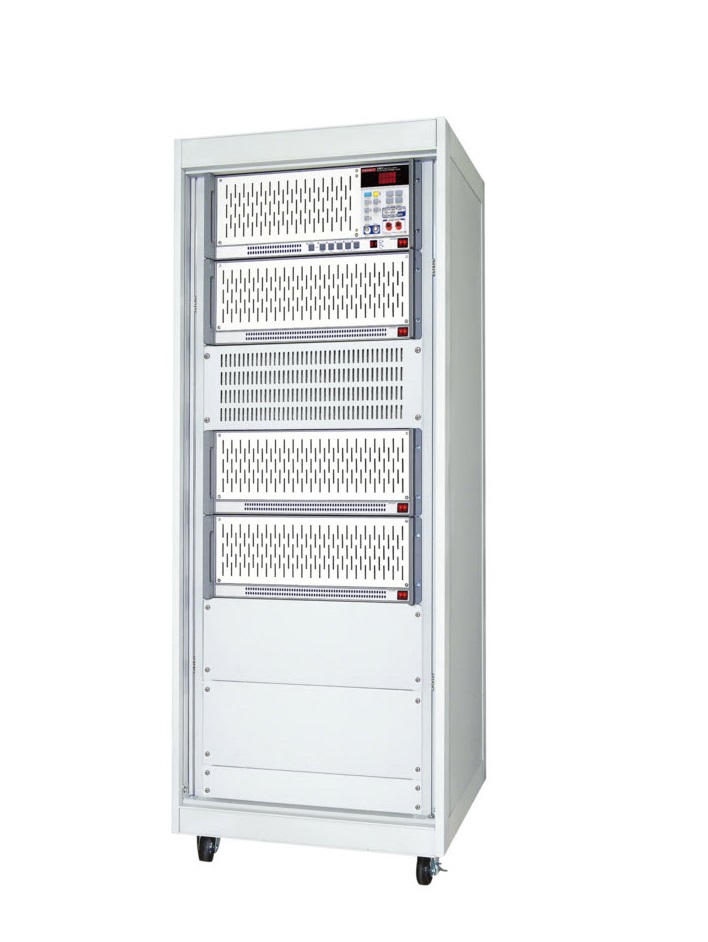

Prodigit 32613 交/直流电子负载(7300VA,72Arms,300Vrms)

Power input: 7200VA
Current input: 72Arms
Voltage input: 300Vrms

Display: V, A, W, VA


Detail





Feature

- Voltage, Current Watt and VA display


- CC, Linear CC, CR and Crest Factor mode


- GPIB / RS232 Interface and 5 states Memory Store/Recall


- Power Factor (PF) adjustable: 1, 0.85~ -0.85


- Threshold Upper/Lower limit capability


- Protections against V, I, W, and ℃.


- Dual 4 1/2 Meter Display for Voltage, Current, Watt and VA


- Suitable for Sine, Square, Step wave


Description

- The 3260 Series is a 300V High power AC and DC Load in one unit, it provides an ideal testing solution for UPS, AVR, D/A inverter, especially for step or square waveform UUT.


- Each High power Series AC/DC Load has it own control and display panel, and with 5 states Store/Recall memory which provides load set-up more efficiently.


 - Adjustable power factor setting (PF, Range: 1, 0.85 ~ -0.85) extends the simulation of test environment.


- Build-in GO/NG meter check function offers brief test result diagnosis for production, QC test throughput.


- 3260 Series are suitable for AC/DC, DC/DC, DC/AC testing, UPS output loading test, DC, 40~70Hz Power Transformer, and can be parallel more units for higher power, R&D, QC, Production testing and ATE System application.
