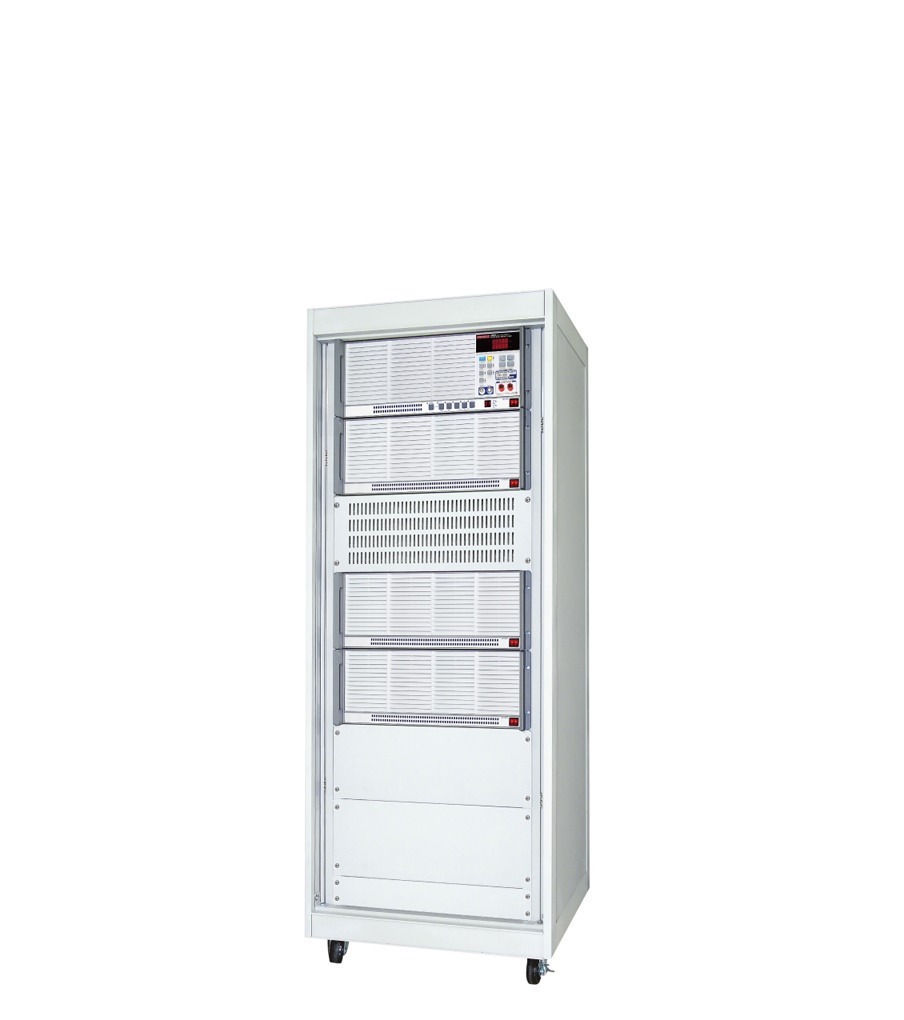

PRODIGIT 32613A AC & DC Electronic Load (300V,72A,7200VA)

Power: 7200VA

Current: 72Arms

Voltage: 50~300Vrms

Protections:

  Over Power Protection: 7560 VA

  Over Current Protection: 75.6A

  Over Voltage Protection: 315V

  Over Temp Protection: 85℃

CC mode:

  Range: 0~36A/36~72A

  Resolution: 9mA/18mA

  Accuracy: ±0.5%

  Low Current Accuracy: 0~3.6A

CR mode:

  Range: 0.833~3.333Ω/3.333~13.33KΩ

  Resolution: 0.300mS/0.075mS

  Accuracy: ±0.5%

Measurement mode (Load):

  Voltage: 300V, ±0.5%

  Current : 72A, ±0.5%

  Power : 7200W, ±0.5%

Dimension (HxWxD): 600 x1283 x600 mm

Weight: 153 kg

Input: 115/230Vac, 50/60Hz

Detail

Datasheet
