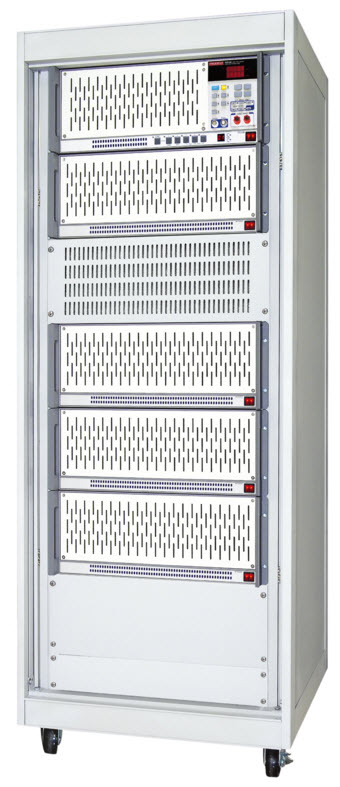

Prodigit 32614A 交直流电子负载(9000VA,90Arms,300Vrms)

  • 制造商: PRODIGIT
    Model: 32614A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Power: 9000VA
Current: 90Arms
Voltage: 50~300Vrms
Protections:
  Over Power Protection: 9450VA
  Over Current Protection: 94.5A
  Over Voltage Protection: 315V
  Over Temp Protection: 85
CC mode:
  Range: 0~45A/45~90A
  Resolution: 11.25mA/21.5mA
  Accuracy: ±0.5%
  Low Current Accuracy: 0~4.5A
CR mode:
  Range: 0.666~2.666Ω/2.666~10.666KΩ
  Resolution: 0.375mS/0.094mΩ
  Accuracy: ±0.5%
Measurement mode (Load):
  Voltage: 300V, ±0.5%
  Current : 90A, ±0.5%
  Power : 9000W, ±0.5%
Dimension (HxWxD): 1556x596x600mm
Weight: 174.5 kg
Input: 115/230Vac, 50/60Hz
