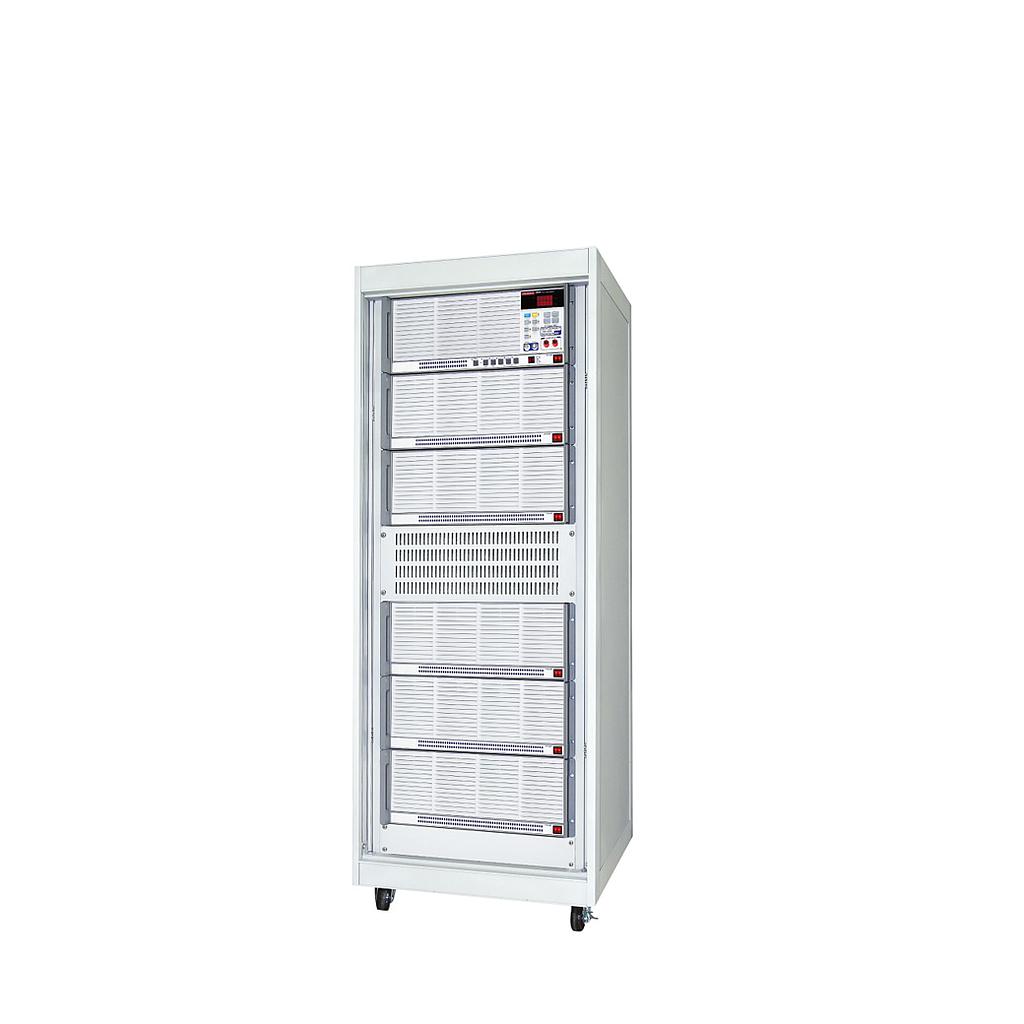

PRODIGIT 32615A AC & DC Electronic Load (300V,108A,10800VA)

Power: 10800VA

Current: 108Arms

Voltage: 50~300Vrms

Protections:

  Over Power Protection: 11340 VA

  Over Current Protection: 113.4 A

  Over Voltage Protection: 315V

  Over Temp Protection: 85℃

CC mode:

  Range: 0~54A/54~108A

  Resolution: 13.5mA/ 27mA

  Accuracy: ±0.5%

  Low Current Accuracy: 0~3.6A

CR mode:

  Range: 0.556~2.224Ω/2.224~8.888KΩ

  Resolution: 0. 452mS/0. 113mS

  Accuracy: ±0.5%

Measurement mode (Load):

  Voltage: 300V, ±0.5%

  Current : 108A, ±0.5%

  Power : 10800W, ±0.5%

Dimension (HxWxD): 600 x1506 x600 mm

Weight: 196 kg

Input: 115/230Vac, 50/60Hz
