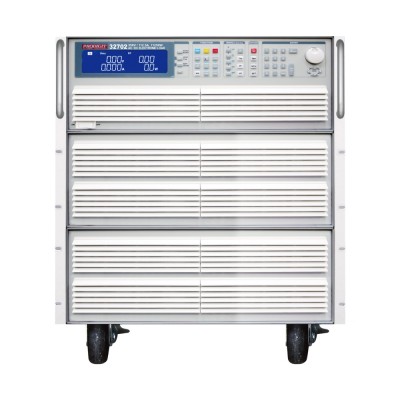

Prodigit 32702 交流/直流电子负载(350V,112.5A,11250W)
制造商: PRODIGIT Model: 32702 来源: Taiwan 保障: 12 Month - 报价要求
- 联系
Power (W): 11250W
Electric current (A): 112.5 Arms / 337.5Apeak
Voltage (V): 50 ~ 350 Vrms / 500 Vdc
Frequency: 40 ~ 440Hz
Over-power protection: 11812.5Wrms or Programmable
Overcurrent protection: 118.125 Arms or Programmable
Overvoltage protection: 367.5 Vrms / 525 Vdc
Overheat protection: Yes
OPERATIONAL REGIME
Continuous current mode for Sin waves
Range: 0 ~ 112.5A
Resolution: 1.875mA / 16bits
Accuracy: ± (0.1% of setting + 0.2% of range) @ 50 / 60Hz
Linear continuous current mode for Sin wave, Square wave or Quasi-Square wave, PWM wave
Range: 0 ~ 112.5A
Resolution: 1.875mA / 16bits
Accuracy: ± (0.1% of setting + 0.2% of range) @ 50 / 60Hz
Continuous resistance mode
Range: 0.533 ohm ~ 10.666K ohm
Resolution: 0.031248mS / 16bits
Accuracy: ± 0.2% of (setting + range) @ 50 / 60Hz
Continuous voltage mode
Range: 50 ~ 350Vrms / 500Vdc
Resolution: 0.1V
Accuracy: ± 0.2% of (setting + range) @ 50 / 60Hz
Continuous power mode
Range: 11250W
Resolution: 1W
Accuracy: ± 0.2% of (setting + range) @ 50 / 60Hz
MEASURING MODE
-Voltage
Measuring range: 500V
Resolution: 0.01V
Accuracy: ± 0.05% of (reading + range)
Parameters: Vrms, Vmax / min, +/- Vpk
-Electric
Measuring range: 56.25Arms / 112.5Arms
Resolution: 1.2mA / 2.4mA
Accuracy: ± 0.1% of (reading + range) @ 50 / 60Hz
Parameters: Irms, I Max / Min, + / - Ipk
- Power
Measuring range: 11250W
Resolution: 0.1875W
Accuracy: ± 0.2% of (reading + range) @ 50 / 60Hz, ± 0.4% of (reading + range)
Parameter: Vrms × Arms Correspondence To Vrms and Arms
Power factor
Measuring range: +/- 0.000 ~ 1.000
Accuracy: ± (0.002 ± (0.001 / PF) * F)
-Frequency
Measuring range: DC, 40 ~ 440Hz
Accuracy: 0.1%
Interface (BUYING): GPIB, RS232, LAN, USB
Operating Temperature: 0 ~ 40
Dimensions (HxWxD): 636 x 480 x 590 mm
Weight: 105kg
