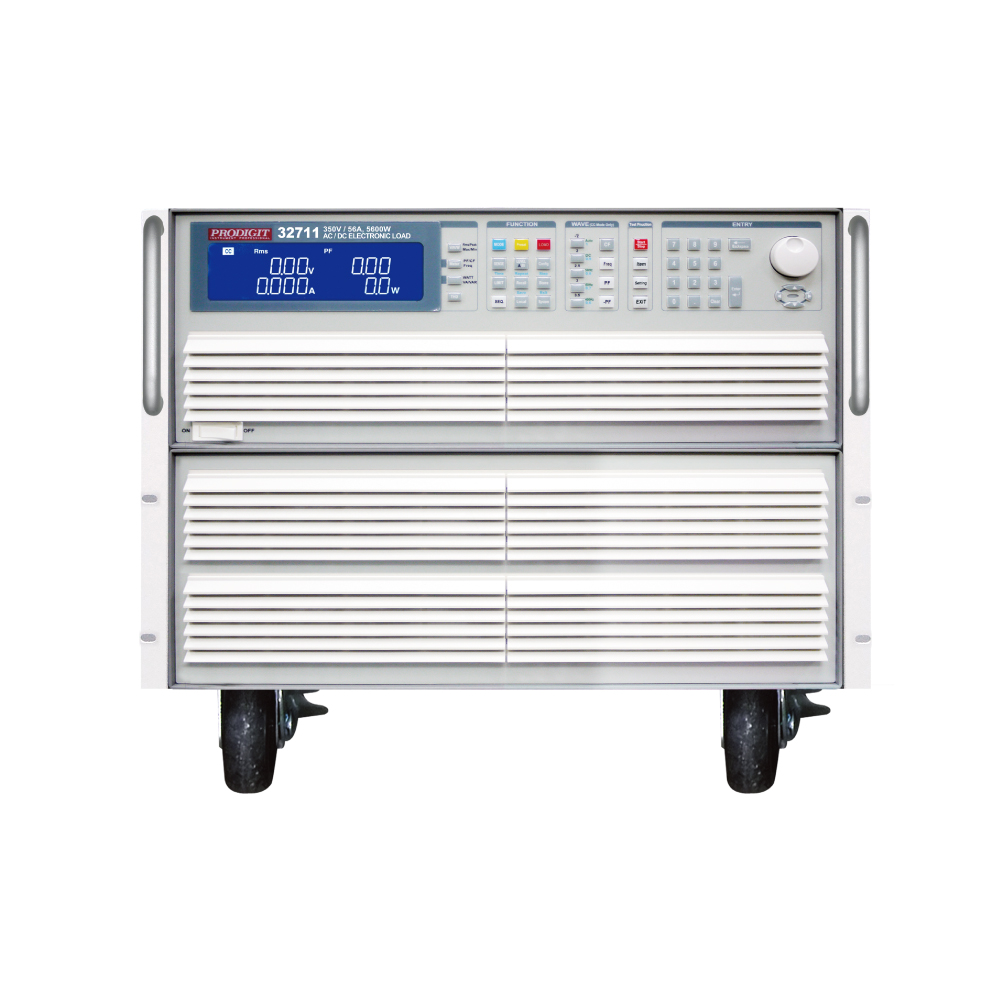

Prodigit 32711 交/直流电子负载(350V,56A,5600W)

  • 制造商: PRODIGIT
    Model: 32711
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

 Manufacturer:Prodigit

Model :32711

Made in : Taiwan

Warranty: 12 months


Power (W): 5600W

current (A): 56 Arms / 168 Apeak

Voltage (V): 50 ~ 350 Vrms / 500 Vdc

Frequency: 40 ~ 440Hz

Over-power protection: 5880 Wrms

Overcurrent protection: 58.8 Arms

Overvoltage protection: 367.5 Vrms / 525 Vdc

Overheat protection: Yes

OPERATIONAL REGIME

Continuous current mode for Sin waves

Range: 0 ~ 56A

Resolution: 1mA / 16bits

Accuracy: ± (0.1% of setting + 0.2% of range) @ 50 / 60Hz, ± 0.5% of (setting + range)

Linear continuous current mode for Sin wave, Square wave or Quasi-Square wave, PWM wave

Range: 0 ~ 56A

Resolution: 1mA / 16bits

Accuracy: ± (0.1% of setting + 0.2% of range) @ 50 / 60Hz

Continuous resistance mode

Range: 1 ohm ~ 20K ohm

Resolution: 0.016666mS / 16bits

Accuracy: ± 0.2% of (setting + range) @ 50 / 60Hz

Continuous voltage mode

Range: 50 ~ 350Vrms / 500Vdc

Resolution: 0.1V

Accuracy: ± 0.2% of (setting + range) @ 50 / 60Hz

Continuous power mode

Range: 5600W

Resolution: 0.1W

Accuracy: ± 0.2% of (setting + range) @ 50 / 60Hz

MEASURING MODE

-Voltage

Measuring range: 500V

Resolution: 0.01V

Accuracy: ± 0.05% of (reading + range)

Parameters: Vrms, Vmax / min, +/- Vpk

-Electric

Measuring range: 28Arms / 56Arms

Resolution: 0.6mA / 1.2mA

Accuracy: ± 0.1% of (reading + range) @ 50 / 60Hz

Parameters: Irms, I Max / Min, + / - Ipk

- Power

Measuring range: 5600W

Resolution: 0.1W

Accuracy: ± 0.2% of (reading + range) @ 50 / 60Hz, ± 0.4% of (reading + range)

Parameter: Vrms × Arms Correspondence To Vrms and Arms

Power factor

Measuring range: +/- 0.000 ~ 1.000

Accuracy: ± (0.002 ± (0.001 / PF) * F)

-Frequency

Measuring range: DC, 40 ~ 440Hz

Accuracy: 0.1%

Interface (BUYING): GPIB, RS232, LAN, USB

Operating Temperature: 0 ~ 40

Dimensions (HxWxD): 458 x 480 x 590 mm

Weight: 58Kg
