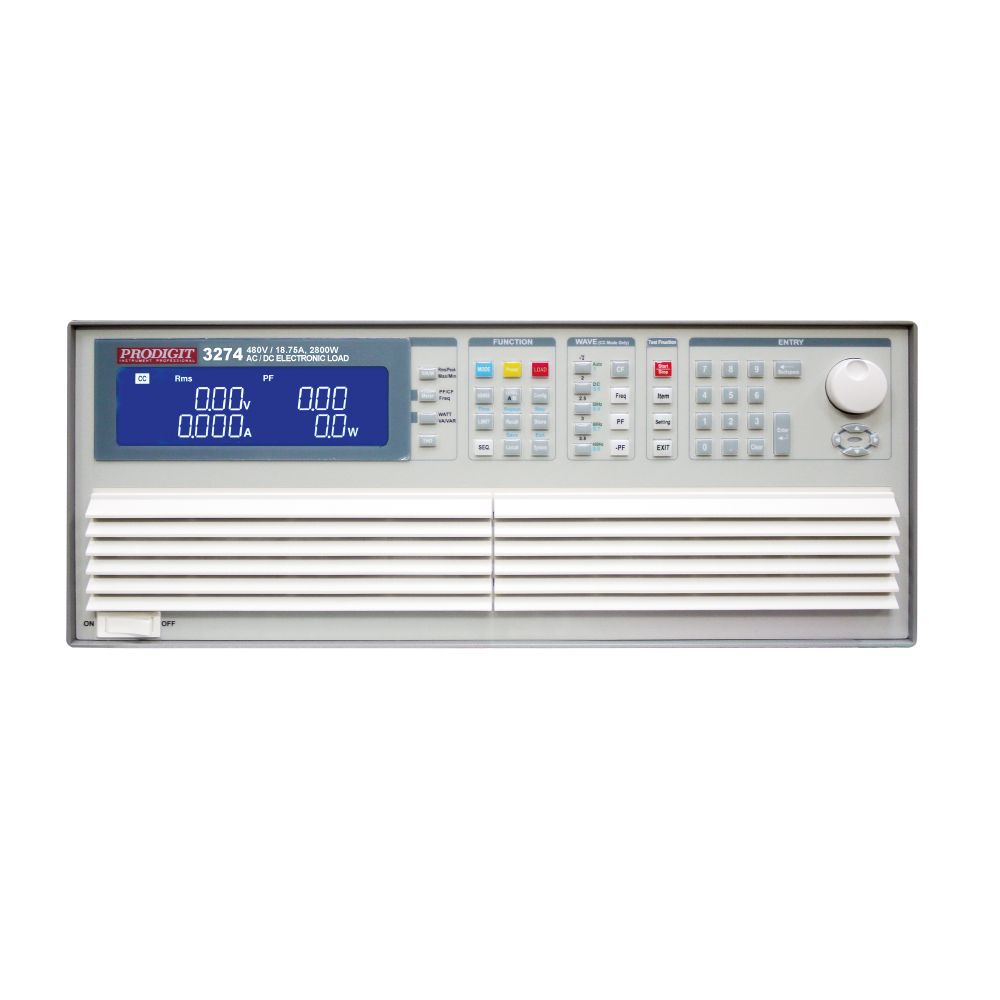

Prodigit 3274交流和直流电子负载(18.75A,350V,2800W)

  • 制造商: PRODIGIT
    Model: 3274
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Model 3274

Manufacture: Prodigit

Warranty: 12 month


Power 2800W

Current 18.75 Arms / 56.25Apeak

Voltage 50~350Vrms / 500Vdc

Over Power Protection(OPP) ≒2940 Wrms or Programmable

Over Current Protection(OCP)≒19.687 Arms or Programmable

Over Voltage Protection(OVP) ≒ 367.5 Vrms / 525Vdc

Over Temp Protection(OTP) YES

Constant Current Mode

Range 0 ~ 18.75A

Resolution 0.3125mA / 16bits

Accuracy ±(0.1% of setting + 0.2% of range ) @ 50/60Hz

Constant Resistance Mode

Range 3.2 ohm ~ 64K ohm

Resolution 0.0052083mS / 16bits

Accuracy ±0.2% of (setting + range) @ 50/60Hz

Constant Voltage Mode

Range 50 ~ 350Vrms / 500Vdc

Resolution 0.1V

Accuracy ±(0.1% of setting + 0.1% of range) @ 50/60Hz

Constant Power Mode

Range 2800W

Resolution 0.1W

Accuracy ±(0.1% of setting + 0.1% of range) @ 50/60Hz

Interface: GPIB; RS-232; LAN; USB

Dimension ( H x W x D ) 177 x 440 x 558 mm

Weight: 27.5Kg
