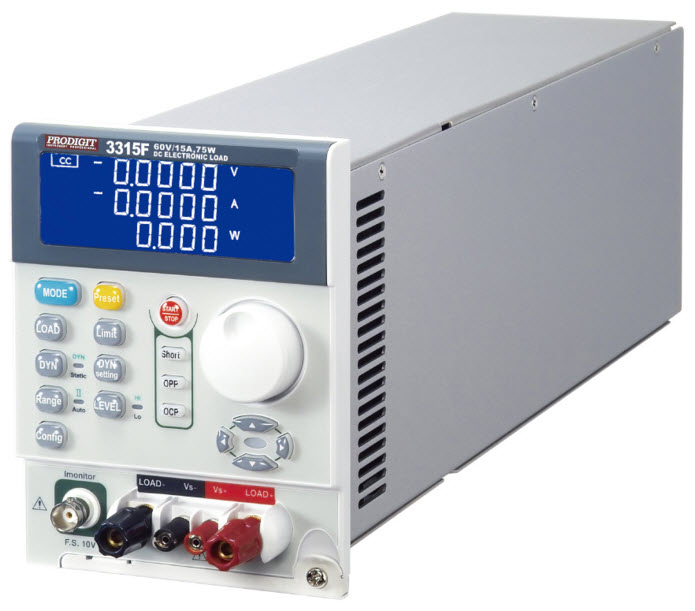

Current Max: 15A
Operating voltage: 60V
Display: V, A, W
Protection: over voltage, over current, over power, over temperature
<link rel="File-List" href="file:///C:DOCUME~1AdminLOCALS~1Tempmsohtml1
Main Frame: 3302F-01
⊙5 digital V/A/W Meter
⊙Power ON status value can be set
⊙High-speed measurement and communication transmission
⊙Flexible CC. CR, CV, CP, Dynamic and Short operation modes
⊙V.A.W. values can be displayed simultaneously
⊙SHORT time setting and SHORT_VH, SHORT_VL setting function
⊙LCD big display
⊙Protections against V, I, W, and ℃
⊙Setting values can be adjusted by rotary knob or push button
⊙Voltage meter display the polarity positive (”+”）or negative (”－”）is selectable
⊙OCP 、 OPP test function
⊙Can be configured in 3302F 〔single channel mainframe〕、3305F〔two channels mainframe〕or 3300F［four channels mainframe〕，and the mainframe with 150 sets Store/Recall memory
⊙SYNC. Load ON function
⊙Optional Interface : GPIB、RS232、USB、LAN
‧Each 3310F Series module has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently.，also can be controlled intranet via RS232、Ethernet、USB and GPIB interface.
‧SHORT time setting and SHORT_VH, SHORT_VL setting function，also can measure Short Voltage and Current.
‧Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input so that load can have a simulated Arbitrary Waveform.
‧The additional OCP 、OPP test function operated by both mainframe and module that will be more efficiency and accuracy on OCP, OPP testing.
