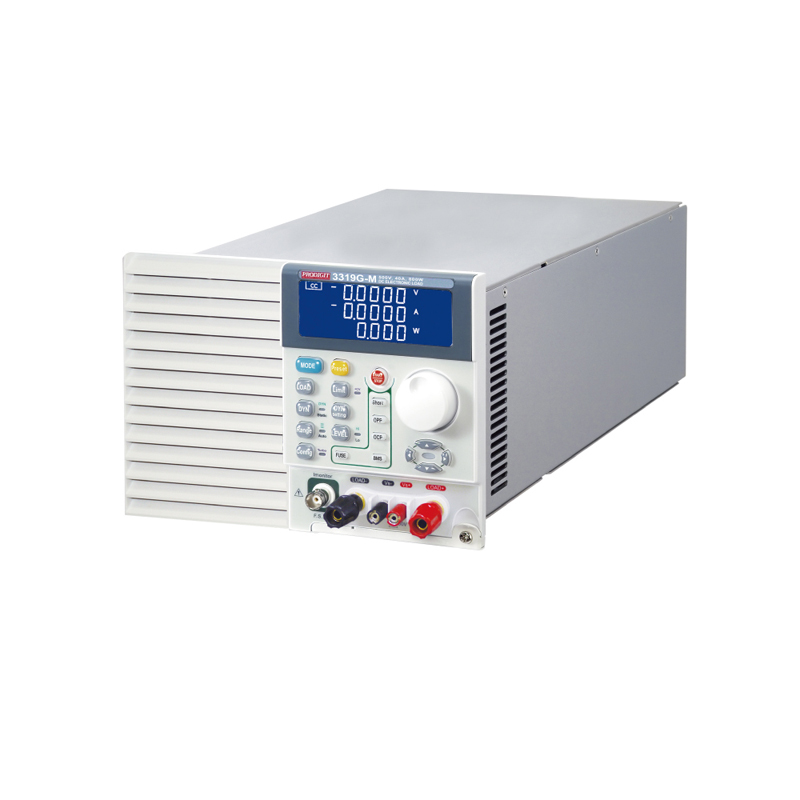

PRODIGIT 3319G-M DC Electronic Load (40A, 500V, 800W)

Power: 800W

Current: 40A

Voltage: 500V

Over Power Protection(OPP): 105%

Over Current Protection(OCP): 105%

Over Voltage Protection(OVP): 105%

Over Temp Protection(OTP): YES

Constant Current Mode:

Range: 0~40.2A

Resolution: 0.67mA

Accuracy: ± 0.1% of ( setting + Range)

Constant Resistance Mode

Range: 0.15Ω ~ 15Ω

Resolution: 0.25mΩ

Accuracy: ± 0.2% of (Setting + Range)

Constant Voltage Mode

Range:  0 ~ 500V

Resolution: 0.01V

Accuracy: ± 0.05% of (Setting + Range)

Constant Power Mode

Range:  0 ~ 800.4W

Resolution: 13.34mW

Accuracy: ± 0.5% of (Setting + Range)

Constant Current + Constant Voltage Mode

Range: 500V/40A

Resolution: 0.001V, 0.67mA

Accuracy: ± 1.0% of (Setting + Range)

Constant Power+ Constant Voltage Mode:

Range: 500V, 800W

Resolution: 0.01V, 13.34mW

Accuracy: ± 1.0% of (Setting + Range)

Dimensions: 143 x 216.4 x 418.8 mm

Weight: 7kg

Option: GPIB Card, RS232 Card, USB Card, LAN Card
