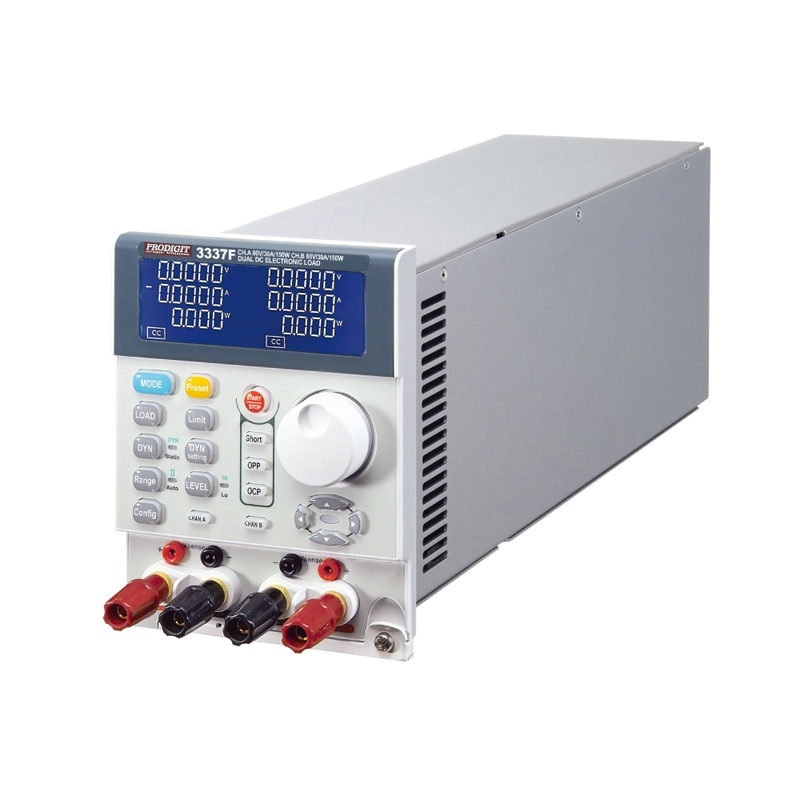

PRODIGIT 3337F Dual DC Electronic Load (80V,30A,150W*2)

Power:  150Wx2

Current:  0~30A; 0~30A

Voltage: 0~80V; 0~80V

Min.Operation Voltage: 1V at 30A; 1V at 30A

-CC mode

+Range: 3A/30A; 3A/30A

+Resolution: 0.05/0.5mA

+Accuracy: 0.1% + 0.1% F.S.

-CR mode

+Range: 0.0443~2.66~159.6KΩ

+Resolution: 16 bits

+Accuracy: 0.2%

-CV mode

+Range: 6V/80V

+Resoluton: 0.135mV/1.35mV

+Accuracy: 0.05% + 0.05% F.S.

-CP mode

+Range: 15W/150W

+Resolution: 0.25mW / 2.5mW

+Accuracy: 0.5% + 0.5% F.S.

- Option (necessary) : 3302F- single channel mainframe ; 3305F- two channels mainframe ; 3300F- four channels mainframe

- Optional interface : GPIB, RS232, USB, LAN
