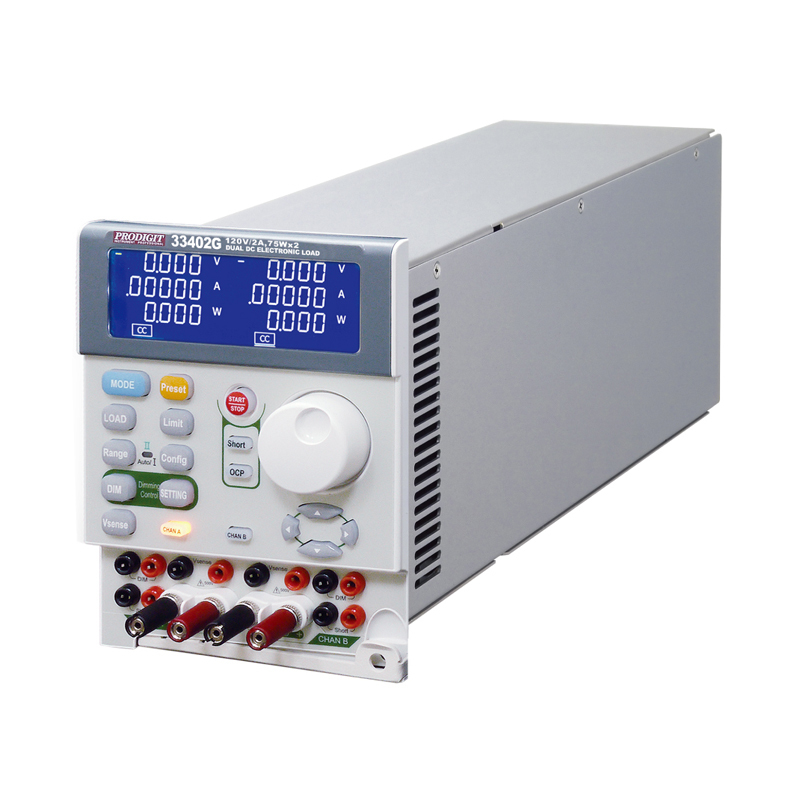

PRODIGIT 33402G LED DC Electronic Load Simulator (120V, 2A, 75Wx2)

Power:  75Wx2

Current: 0~0.2A: 0~2A

Voltage: 0~120V

Min.Operation Voltage: 1.8V at 2A

-CC mode

+Range: 0~0.2A; 0~2A

+Resolution: 0.01mA; 0.04mA

+Accuracy: 0.1%

-CR mode

+Range: CRL: CRL:1.5Ω~1.5KΩ (60V); CRH:3Ω~3KΩ (120V)

+Resolution: 33.33μS; 16.66μS

+Accuracy: ±0.2%

-CV mode

+Range: 30V / 60V / 120V

+Resolution: 0.0005V / 0.001V / 0.002V

+Accuracy: ±0.05%

-CP mode

+Range: NA

+Resolution: NA

+Accuracy: NA

-LED mode

+Vo Voltage range: LEDL:  30V / LEDM : 60V / LEDH : 120V

+Rd Resistance range:

LEDL : 1.25 ~ 1.5KΩ at Vo-Vd = 0~3V

LEDL : 12.5 ~ 15KΩ at Vo-Vd = 3~30V

LEDM : 2.5 ~ 3KΩ at Vo-Vd = 0~6V

LEDM : 25 ~ 30KΩ at Vo-Vd = 6~60V

LEDH : 5 ~ 6KΩ at Vo-Vd = 0~12V

LEDH : 50 ~ 60KΩ at Vo-Vd = 12~120V

+Resolution: 16 bits

+Accuracy: Vd: ±(0.05% of setting + 0.1% of range); Rd: ±(0.05% of setting + 0.1% of range)

- Option (necessary) : 3302F- single channel mainframe ; 3305F- two channels mainframe ; 3300F- four channels mainframe

- Optional interface : GPIB, RS232, USB, LAN
