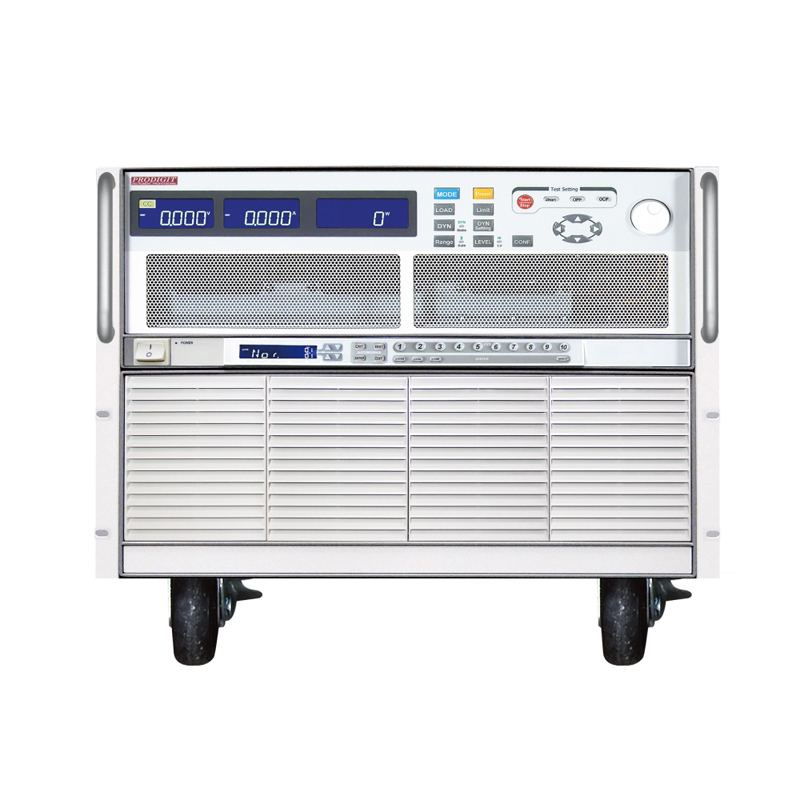

PRODIGIT 33501F High Power DC Electronic Load (60V,240A,2400W)

Power: 2400W

Current: 0~240A

Voltage: 0~60V

Min.Operation Voltage: 0.7V at 240A

-CC mode

Range: 0~24A/240A

Resolution: 0.4mA/4mA

Accuracy: ±0.1%

-CR mode

Range: 0.0041~0.25~15KΩ

Resolution: 0.0041mΩ/0.066mS

Accuracy: ±0.2%

-CV mode

Range: 6V/60V

Resolution: 0.1mV/1mV

Accuracy: ±0.05%

-CP mode

Range: 240W/2400W

Resolution: 4mW/40mW

Accuracy: ±0.5%

- Optional interface : GPIB, RS232, USB, LAN
