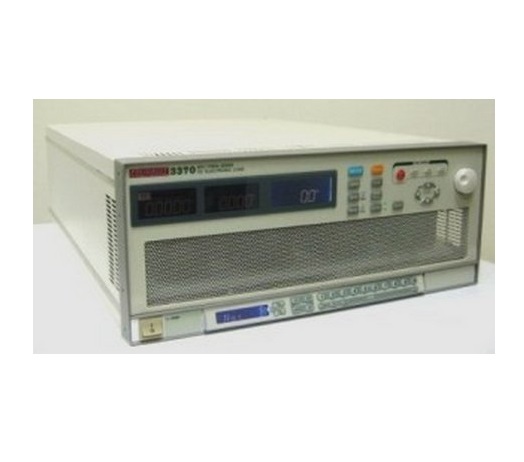

Prodigit 3370 超高功率高电压直流电子负载（5000W，1000A，60V）



Feature

- Compact size (483Wx177Hx635Dmm) possess 5KW/1000A Electronic Load capability

- Power ON status can be set

- 5 digit V/A/W Meter

- CC, CR, CV, CP, Dynamic and Short operation mode

- High-speed measurement and communication transmission

- SHORT time setting

- Large LCD Display、setting values can be adjusted by rotary knob or push button

- Protections against V,I,W, and ℃

- Voltage 、Current and Watt value can be displayed simultaneously

- Voltage meter display the polarity positive (”+”）or negative（”－”）is selectable

- OCP 、 OPP test function

- Optional Interface: GPIB、RS232、USB、LAN

Description

- 3370 has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and LAN interface.

- SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current

- Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.

- Single key for OCP 、OPP test function will be more efficiency and accuracy on OCP、OPP testing.

- Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

- 150 sets test parameter and status storage function, user can call the storage memory real time in accordance with the auto sequence requirement.
