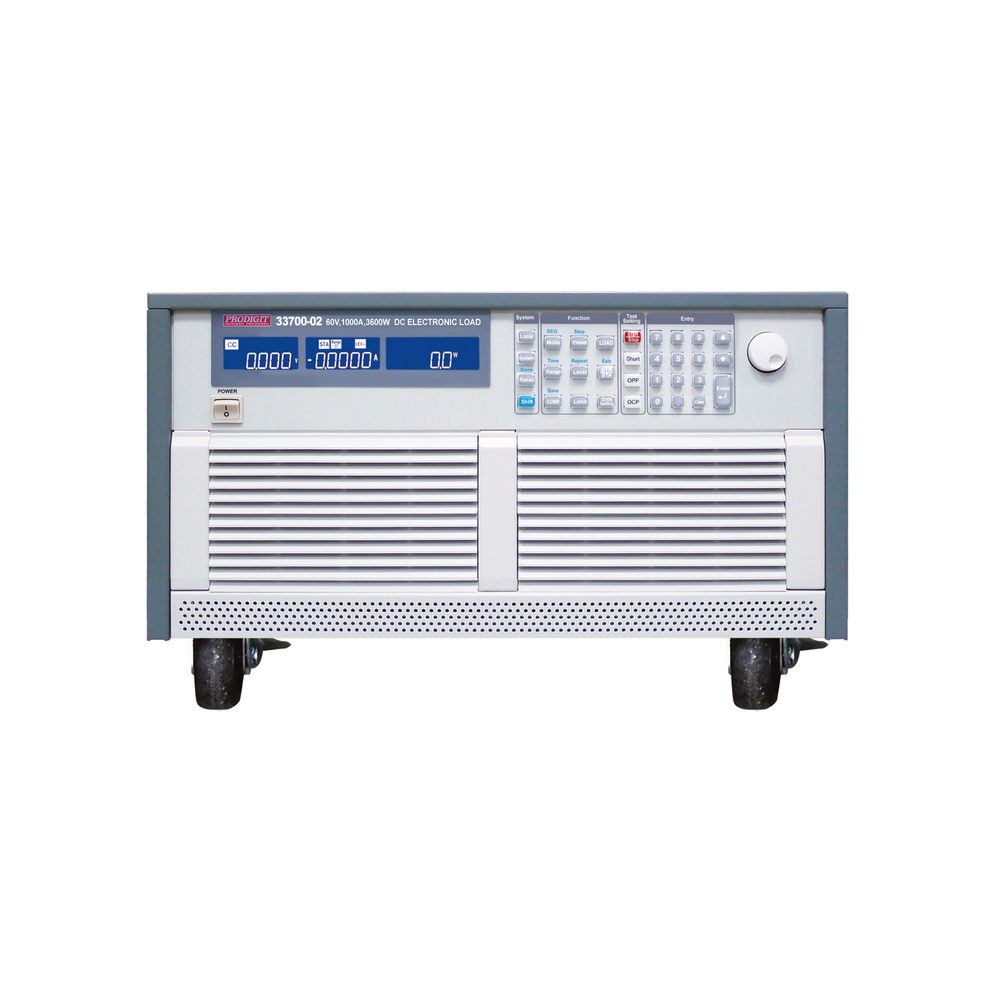

PRODIGIT 33700-02 Compact High Power DC Electronic Load (60V, 1000A, 3600W)

Power: 3600W

Current: 0~100A/0~1000A

Voltage: 0~60V

Min.Operation Voltage: 0.1V at 100A/0.7V at 1000A

Protections:

  Over Power Protection (OPP): 1.05%

  Over Current Protection (OCP): 1.05%

  Over Voltage Protection (OVP): 1.05%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~100A/0~1000A

  Resolution: 1.667mA/16.676mA

  Accuracy: 0.1%  setting + 0.2% range

CR mode:

  Range: 0.001-0.06Ω/0.06-3600Ω

  Resolution: 0.001Ω/277uS

  Accuracy:   ±0.2%

CV mode:

  Range: 60V

  Resolution: 1mV

  Accuracy:    ±0.05%

CP mode:

  Range: 500W/5000W

  Resolution: 7.5mW/75mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 6V/6~60V, ±0.025%

  Current : 0 ~ 100A/100~1000A, ±0.1%

  Power : 0 ~ 500W/3600W, ±0.65%

Short circuit current: 1000A

Dimension (HxWxD): 365 x 540 x 750 mm

Weight: 85 kg


Detail

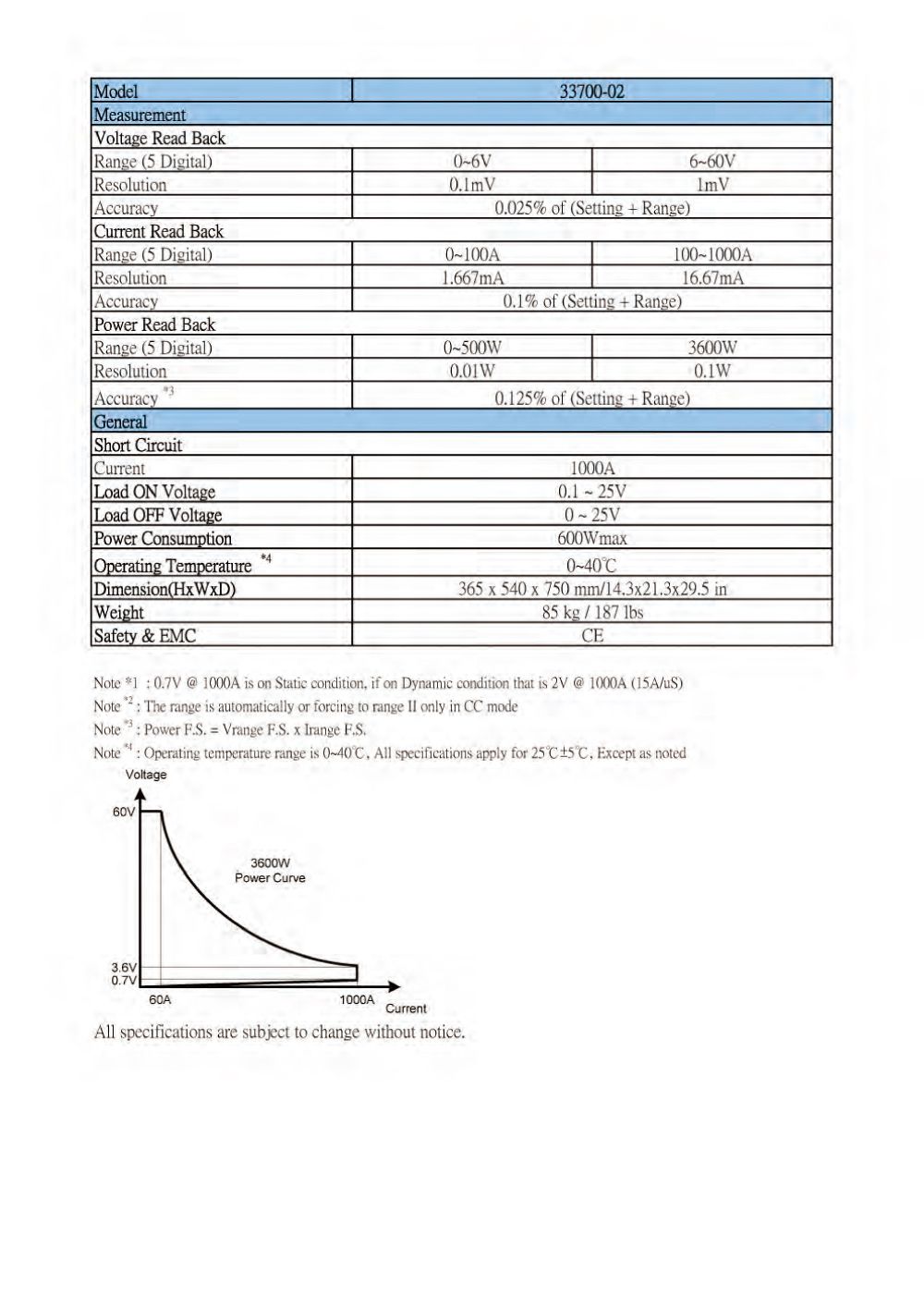

Datasheet
