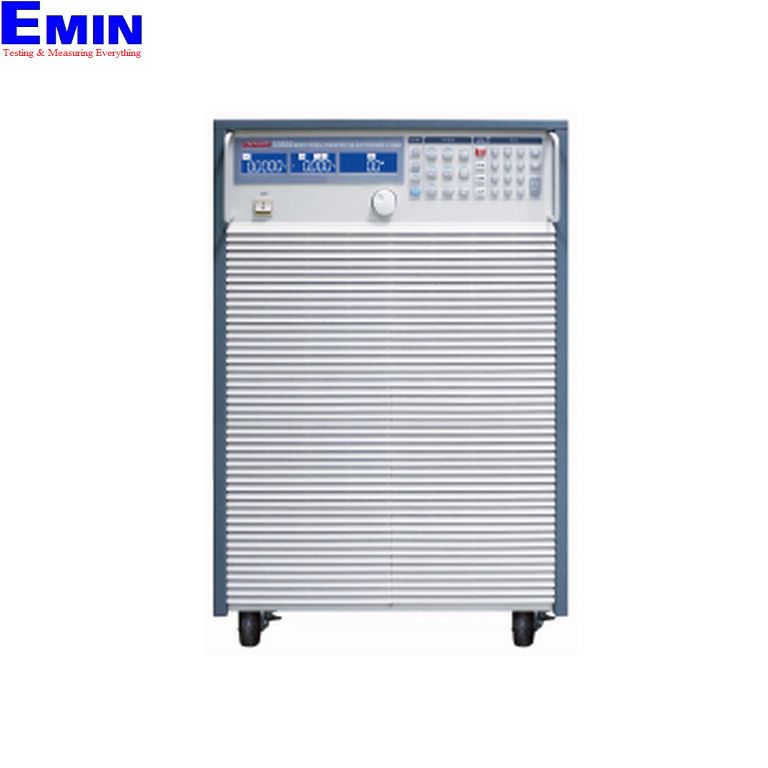

Prodigit 33802 直流电子负载(15KW,120A,600V)

Manufacturer: Prodigit Electronics - Taiwan
Model: 33802
Warranty: 12 months

Power input: 15KW
Current input: 120A
Voltage input: 600V

Display: V, A, W

Detail

Feature

● Compact size (1608H*448W*764Dmm) posses 40KW load capability


● 5 digit V/A/W Meter


● High-speed measurement and communication transmission


● Large LCD Displaysetting values can be adjusted by rotary knob or push button


● Voltage Current and Watt value can be displayed simultaneously


● Capable for Power Factor Correction (PFC) Test


● OCP OPP test function automatically


● Power ON status can be set


● CC, CR, CV, CP, Dynamic and Short operation mode


● SHORT time setting


● Protections against V,I,W, and ℃


● Voltage meter display the polarity positive (”+”or negativeis selectable


● Optional Interface: GPIBRS232USBLAN


Description

‧3380 Series has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB, RS232USB and LAN interface.


‧SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.


‧Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
