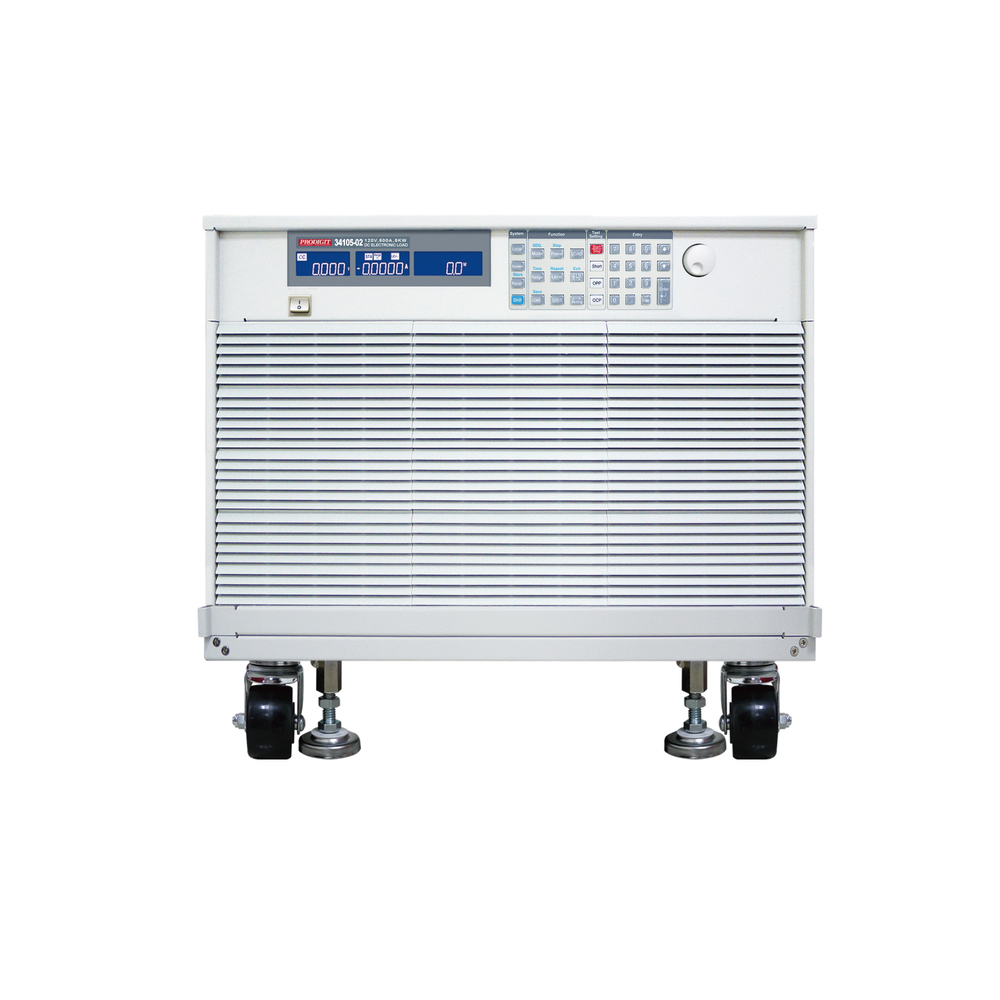

PRODIGIT 34105-02 Compact High Power DC Electronic Load (120V, 500A, 5KW)

Power: 5KW

Current: 0~50A/0~500A

Voltage: 0~120V

Min.Operation Voltage: 0.2V at 50A/2V at 500A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 105%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~50A/0~500A

  Resolution: 0.843mA/8.43mA

  Accuracy:    ±0.1%

CR mode:

  Range: 14400~0.24Ω/0.24~0.004Ω

  Resolution: 69.444uS/4uΩ

  Accuracy:    ±0.2%

CV mode:

  Range: 120V

  Resolution: 2mV

  Accuracy:    ±0.05%

CP mode:

  Range: 500W/5000W

  Resolution: 8.34mW/83.4mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 12V/12~120V, ±0.025%

  Current : 0 ~ 50A/50~500A, ±0.1%

  Power : 0 ~ 500W/5000W, ±0.125%

Short circuit current: 500A

Dimension (HxWxD): 577 x 647 x 766 mm

Weight: 100 kg


Detail

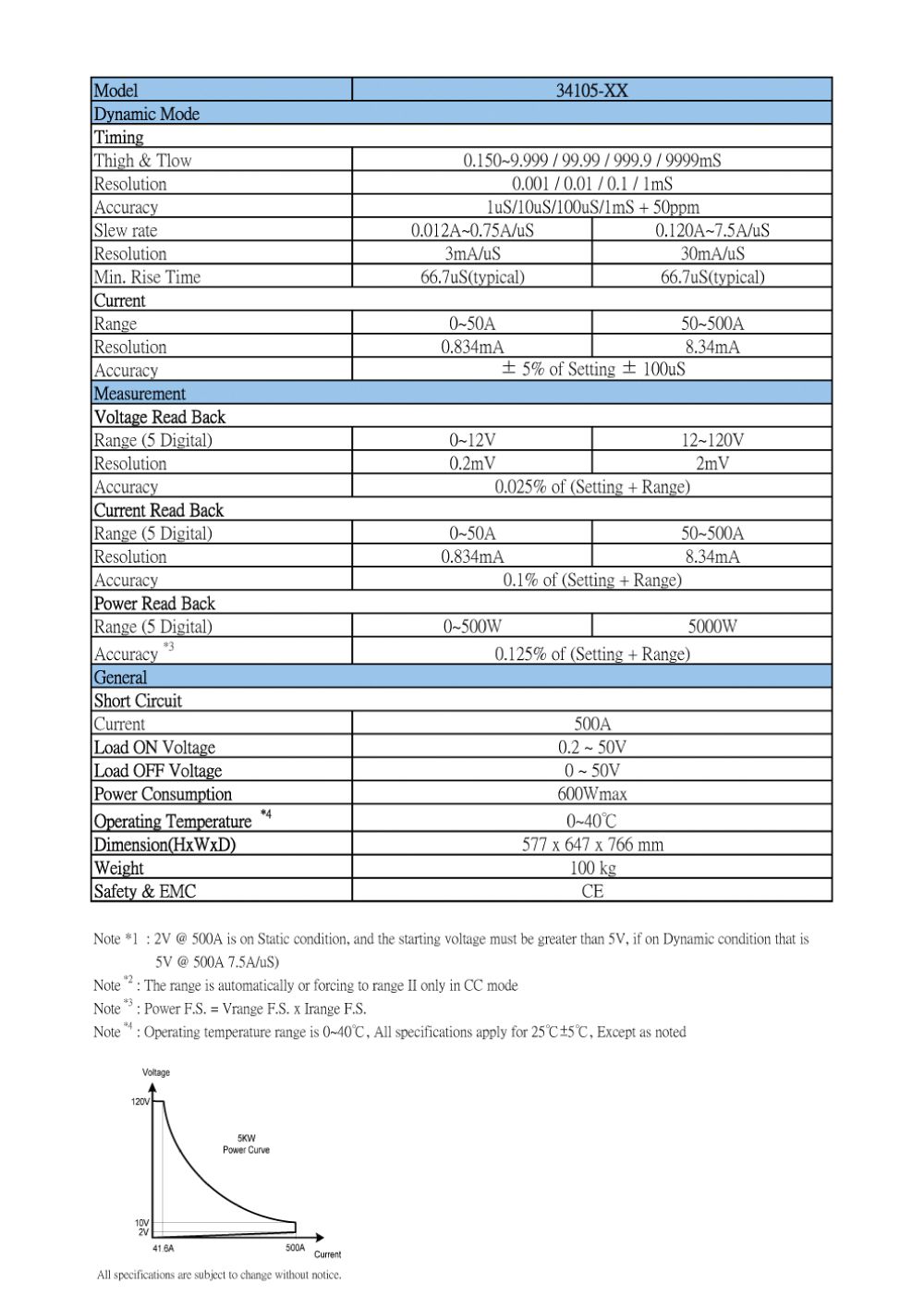

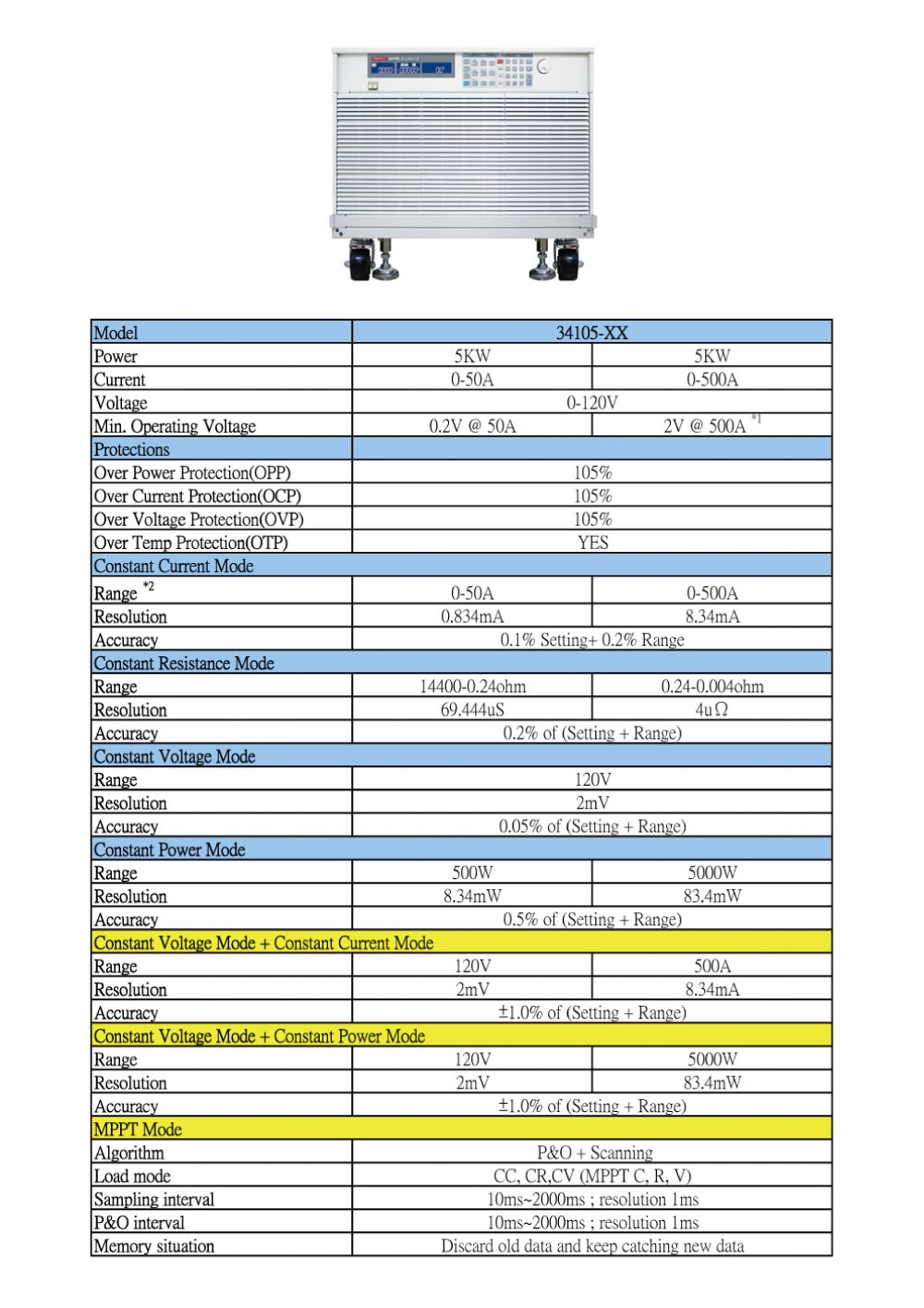

Datasheet
