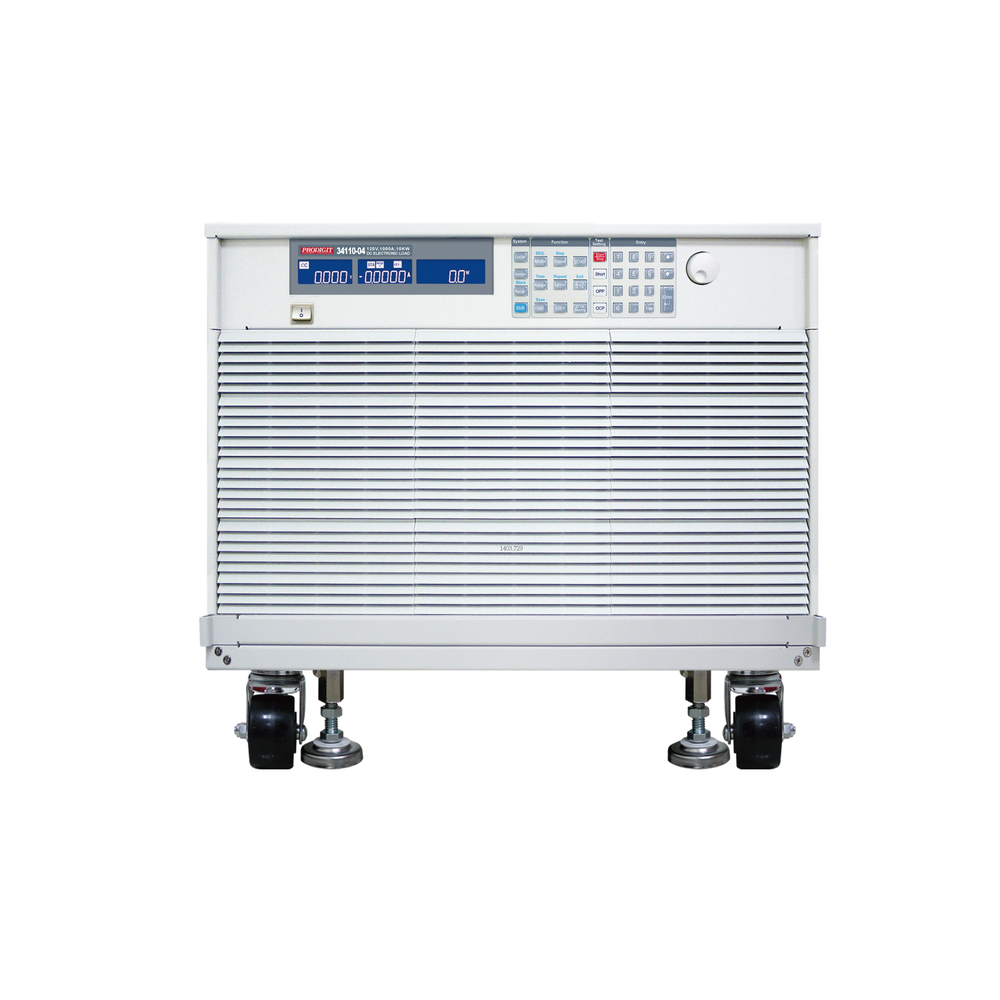

PRODIGIT 34110-04 紧凑型大功率直流电子负载 (120V, 1000A, 10KW)

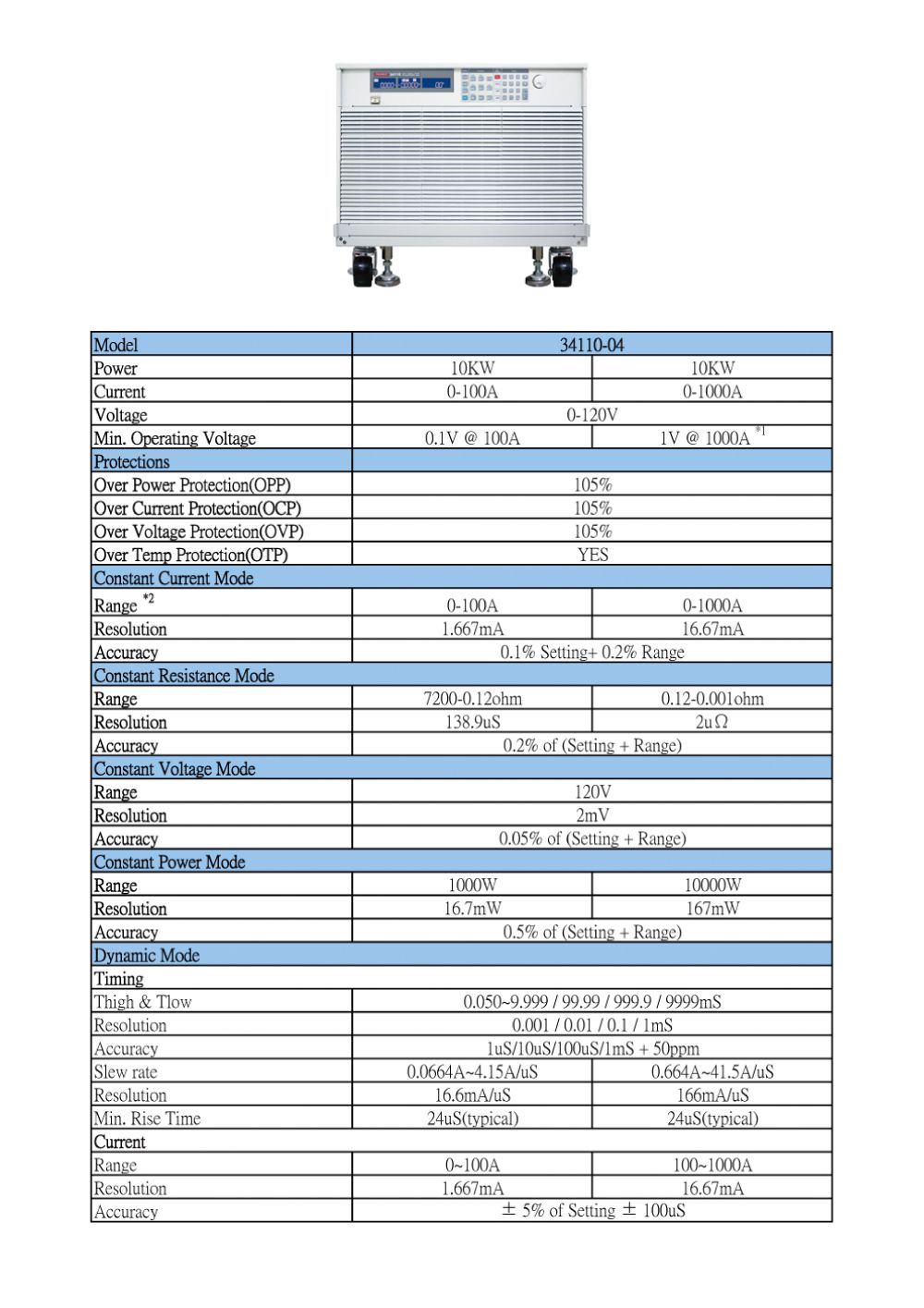

Power: 10KW

Current: 0~100A/0~1000A

Voltage: 0~120V

Min.Operation Voltage: 0.1V at 100A/1V at 1000A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 105%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~100A/0~1000A

  Resolution: 1.667mA/16.67mA

  Accuracy:    ±0.1%

CR mode:

  Range: 7200-0.12Ω/0.12-0.001Ω

  Resolution: 138.9uS/2uΩ

  Accuracy:    ±0.2%

CV mode:

  Range: 120V

  Resolution: 2mV

  Accuracy:    ±0.05%

CP mode:

  Range: 1000W/10000W

  Resolution: 16.7mA/167mA

  Accuracy:    ±0.5%

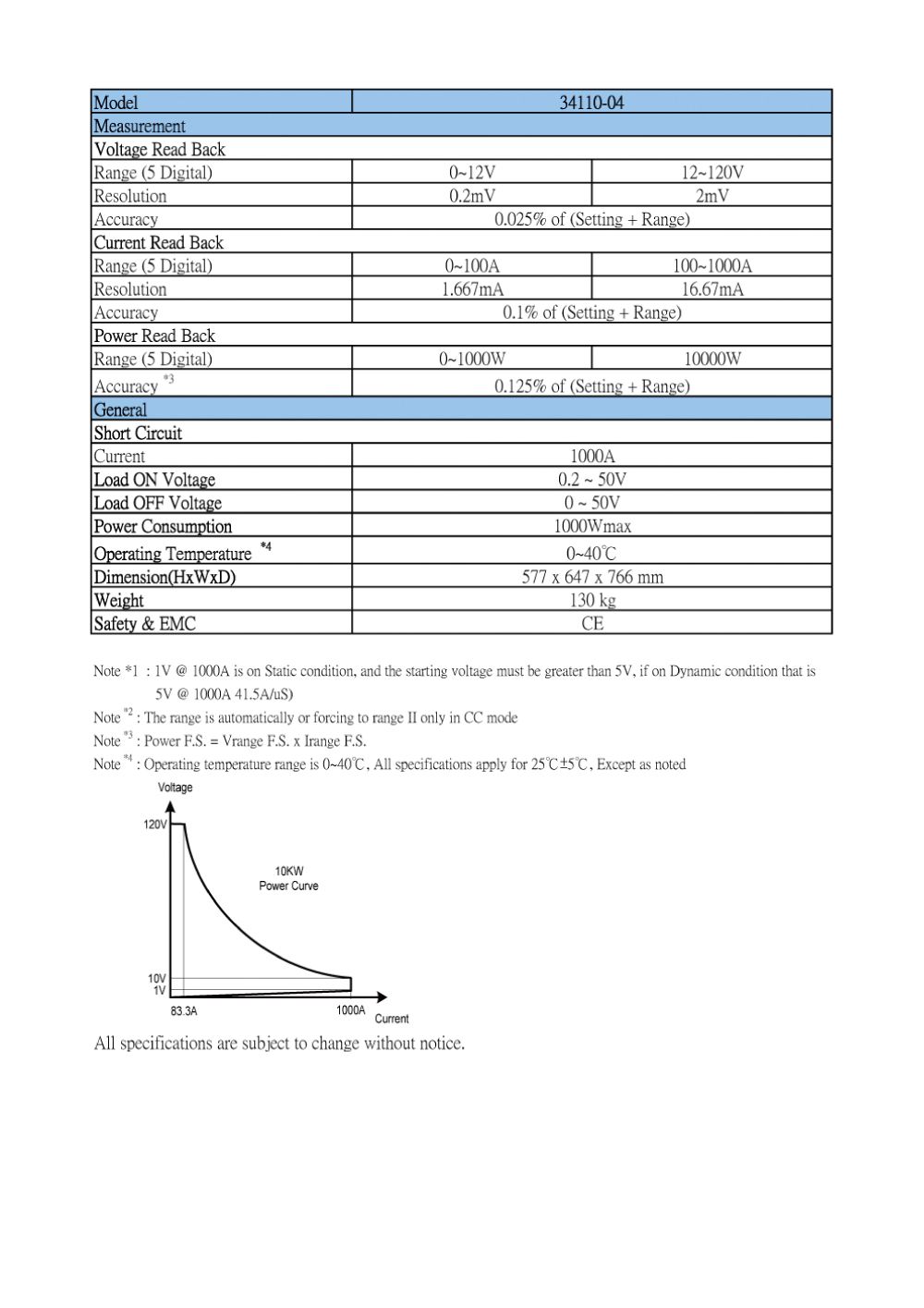

Measurement mode (Load):

  Voltage: 0 ~ 12V/12~120V, ±0.025%

  Current : 0 ~ 100A/100~1000A, ±0.1%

  Power : 0 ~ 1000W/10000W, ±0.125%

Short circuit current: 1000A

Dimension (HxWxD): 577 x 647 x 766 mm

Weight: 130 kg
