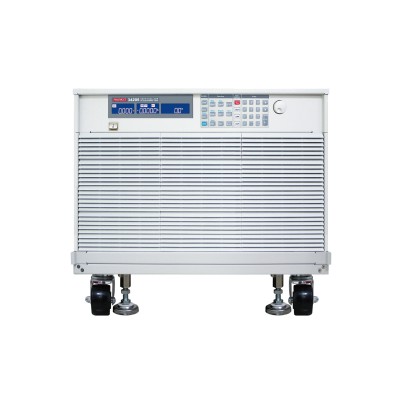

Prodigit 34205A超高功率直流电子负载(5KW,16A / 160A,600V)

  • 制造商: PRODIGIT
    Model: 34205A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Power: 5KW
Current: 0~16A/0~160A
Voltage: 0~600V
Min.Operation Voltage: 10V@160A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 105%
  Over Voltage Protection (OVP): 105%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 0~16A/0~160A
  Resolution: 0.267mA/2.67mA
  Accuracy:    ±0.1%
CR mode:
  Range: 3.75~15000Ω/0.0378~3.75Ω
  Resolution: 4.4uS/63uΩ
  Accuracy:    ±0.2%
CV mode:
  Range: 600V
  Resolution: 10mV
  Accuracy:    ±0.05%
CP mode:
  Range: 500W/5000W
  Resolution: 8.334mW/83.34mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 60V/60~600V, ±0.025%
  Current : 0 ~ 16A/16~160A, ±0.1%
  Power : 0~500W/5000W, ±0.125%
Short circuit current: 160A
Dimension (HxWxD): 573 x 647 x 766 mm
Weight: 100 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
