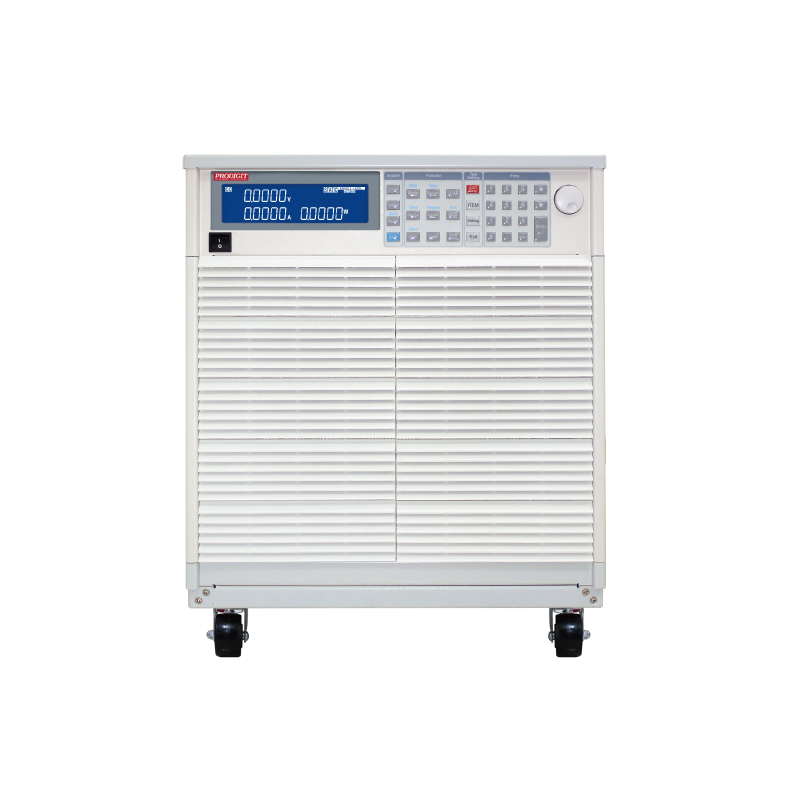

PRODIGIT 34208C Compact High Power DC Electronic Load (600V, 560A, 8KW)

Power: 8KW

Current: 0 ~ 56A; 0 ~ 560A

Voltage: 0 ~ 600V

Min. Operating Voltage:10V at 560A

Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)

Constant Current Mode Range: 56A; 560A

Constant Resistance Mode Range: 64284Ω~1.0714Ω; 1.0714Ω~0.01788Ω

Constant Voltage Mode Range: 600V

Constant Power Mode Range: 800W; 8000W

Constant Voltage Mode + Constant Current Mode Range: 600V; 560A

Constant Voltage Mode + Constant Power Mode Range: 600V; 8000W

Surge & Normal current: 0~560A

Dynamic Mode:

- Timing: 0.010~9.999 / 99.99 / 999.9 / 9999mS

- Current: 0~56A; 56~560A

Measurement

- Voltage Read Back Range (5 Digital): 0~60V; 60~600V

- Current Read Back Range (5 Digital): 0~56A; 56~560A

- Power Read Back Range: 8000W

Typical Short Resistance: 0.0179Ω

Maximum Short Current: 560A

Load ON Voltage: 0.4 ~ 100V

Load OFF Voltage: 0 ~ 100V

Power Consumption: 750VA

Dimension (HxWxD): 572x444x763mm

Weight: 77.5 kg

Temperature: 0~40℃
