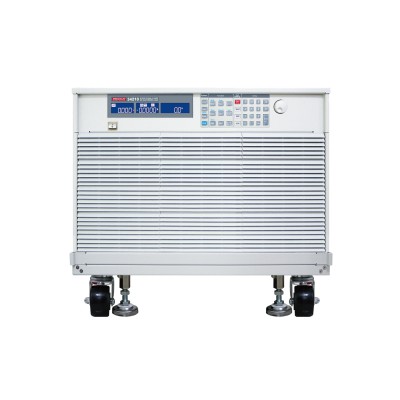

Prodigit 34215A 超高功率直流电子负载（15KW，48A / 480A，600V）

Power: 15KW
Current: 0~48A/0~480A
Voltage: 0~600V
Min.Operation Voltage: 10V@480A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 105%
  Over Voltage Protection (OVP): 105%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 48A/0~480A
  Resolution: 0.8mA/8.0mA
  Accuracy:    ±0.1%
CR mode:
  Range: 1.25~15000Ω/0.0126~1.25Ω
  Resolution: 0.0133mS/0.021mΩ
  Accuracy:    ±0.2%
CV mode:
  Range: 600V
  Resolution: 10mV
  Accuracy:    ±0.05%
CP mode:
  Range: 1500W/15000W
  Resolution: 25mW/250mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 60V/60~600V, ±0.025%
  Current : 0 ~ 48A/48~480A, ±0.1%
  Power : 1500W/15000W, ±0.125%
Short circuit current: 480A
Dimension (HxWxD): 728 x 647 x 766 mm
Weight: 170 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN

Datasheet
