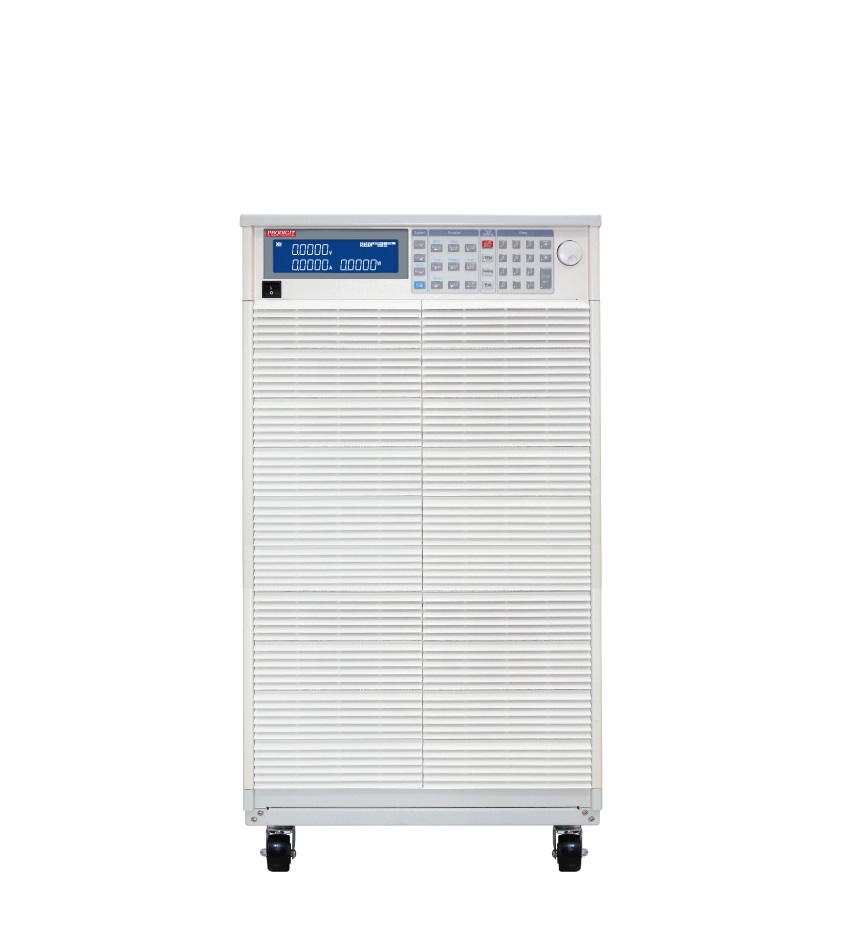

PRODIGIT 34224C Compact High Power DC Electronic Load (600V, 1680A, 24KW)

Power: 24KW

Current: 0 ~ 168A; 0 ~ 1680A

Voltage: 0 ~ 600V

Min. Operating Voltage: 10V at 1680A

Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)

Constant Current Mode Range: 168A; 1680A

Constant Resistance Mode Range: 21428~0.357133Ω; 0.357133~0.00596Ω

Constant Voltage Mode Range: 600V

Constant Power Mode Range: 2400W; 24000W

Constant Voltage Mode + Constant Current Mode Range: 600V; 1680A

Constant Voltage Mode + Constant Power Mode Range: 600V; 24000W

Surge & Normal current: 0~1680A

Dynamic Mode:

- Timing: 0.010~9.999 / 99.99 / 999.9 / 9999mS

- Current: 0~168A; 168~1680A

Measurement

- Voltage Read Back Range (5 Digital): 0~60V; 60~600V

- Current Read Back Range (5 Digital): 0~168A; 168~1680A

- Power Read Back Range: 24000W

Typical Short Resistance: 0.0060Ω

Maximum Short Current: 1680A

Load ON Voltage: 0.4 ~ 100V

Load OFF Voltage: 0 ~ 100V

Power Consumption: 1450VA

Dimension (HxWxD): 887x444x763mm

Weight: 155 kg

Temperature: 0~40℃
