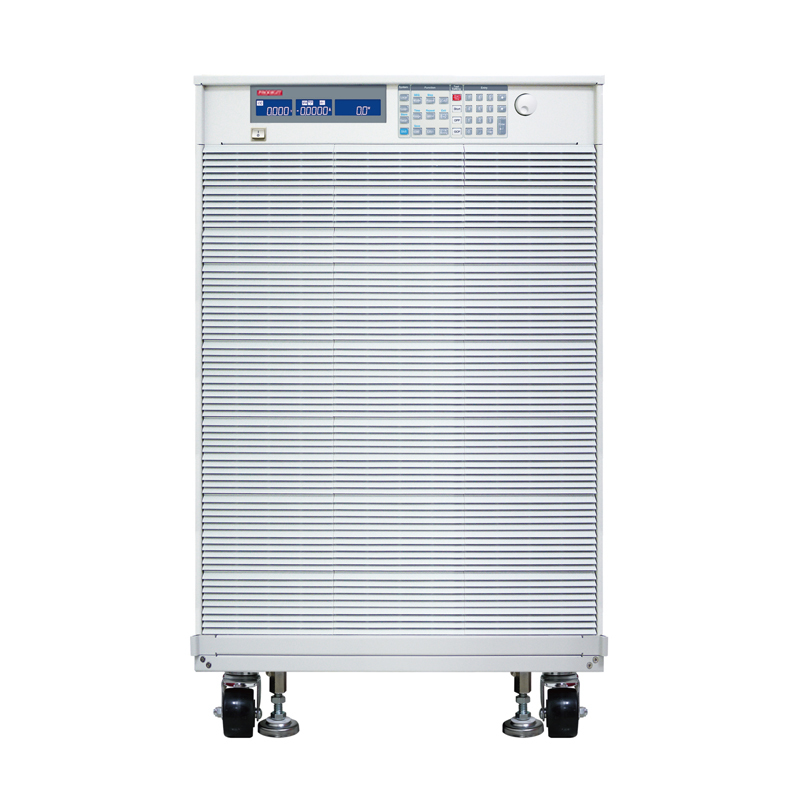

PRODIGIT 34235A Compact High Power DC Electronic Load (35000W, 1120A/600V)

Power: 35KW

Current: 0~112A/0~1120A

Voltage: 0~600V

Min.Operation Voltage: 10V at 1120A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 104%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 112A/1120A

  Resolution: 1.792mA/17.92mA

  Accuracy:    ±0.1%

CR mode:

  Range: 6428.4Ω~0.5357Ω /0.5357Ω~0.009Ω

  Resolution: 31.1μs /0.009mΩ

  Accuracy:    ±0.2%

CV mode:

  Range: 600V

  Resolution: 10mV

  Accuracy:    ±0.05%

CP mode:

  Range: 3500W/35000W

  Resolution: 56mW/560mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 60V/60~600V, ±0.025%

  Current : 0 ~ 112A/112~1120A, ±0.1%

  Power : 10000W/35000W, ±0.125%

Short circuit current: 1120A

Dimension (HxWxD): 1353x647x766mm

Weight: 390 kg

Optional interface: GPIB, RS232, USB, LAN
