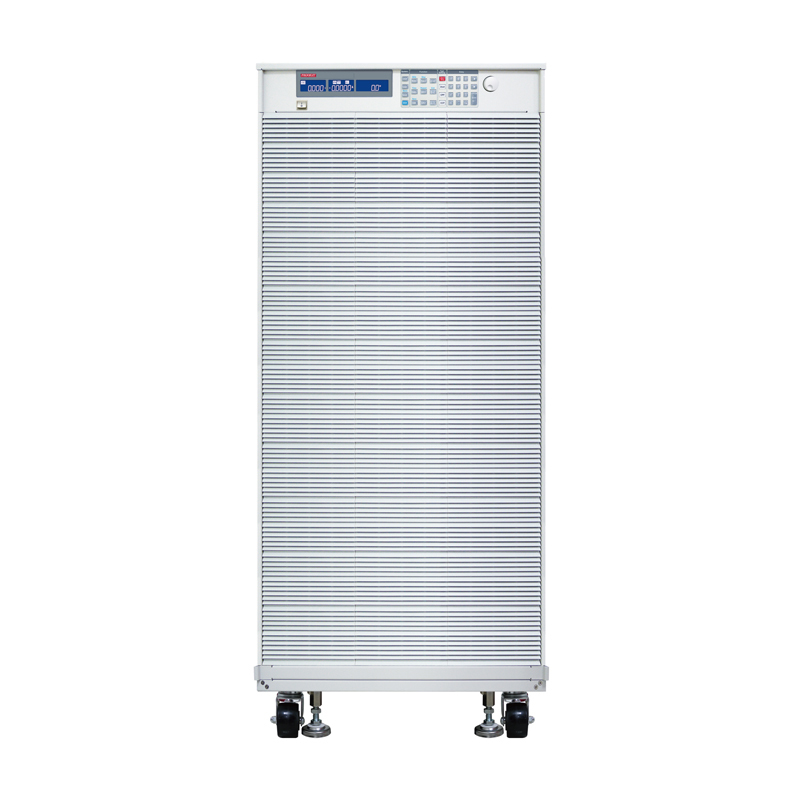

PRODIGIT 34240A Compact High Power DC Electronic Load (600V,1280A,40KW)

Power: 40KW

Current: 0~128A/0~1280A

Voltage: 0~600V

Min.Operation Voltage: 10V at 1280A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 104%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 128A/1280A

  Resolution: 2.048mA /20.48mA

  Accuracy:    ±0.1%

CR mode:

  Range: 5625Ω ~ 0.46875Ω / 0.46875Ω~0.00787Ω

  Resolution: 35.5μs/ 0.007875mΩ

  Accuracy:    ±0.2%

CV mode:

  Range: 600V

  Resolution: 10mV

  Accuracy:    ±0.05%

CP mode:

  Range: 4000W/40000W

  Resolution: 64mW/640mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 60V/60~600V, ±0.025%

  Current : 0 ~ 128A/128~1280A, ±0.1%

  Power : 10000W/40000W, ±0.125%

Short circuit current: 1280A

Dimension (HxWxD): 1509x647x766mm

Weight: 430kg

Optional interface: GPIB, RS232, USB, LAN
