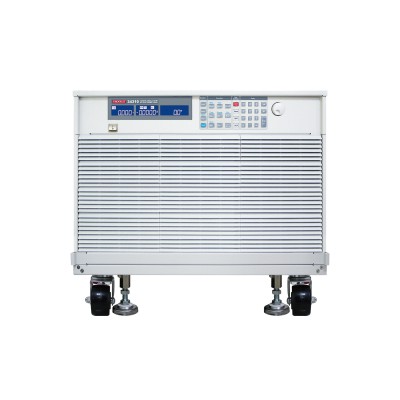

Prodigit 34310A 超高功率直流电子负载（10KW，100A，1000V）

Power: 10KW
Current: 0~10A/0~100A
Voltage: 0~1000V
Min.Operation Voltage: 20V@100A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 104%
  Over Voltage Protection (OVP): 104%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 10A/100A
  Resolution: 0.16mA/1.6mA
  Accuracy:    ±0.1%
CR mode:
  Range: 10~12000Ω/0.2004~10Ω
  Resolution: 1.666uS/0.167mΩ
  Accuracy:    ±0.2%
CV mode:
  Range: 20~1000V
  Resolution: 16mV
  Accuracy:    ±0.05%
CP mode:
  Range: 1000W/10000W
  Resolution: 16mW/160mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 100V/100~1000V, ±0.025%
  Current : 0 ~ 10A/10~100A, ±0.1%
  Power : 1000W/10000W, ±0.125%
Short circuit current: 100A
Dimension (HxWxD): 573 x 647 x 766 mm
Weight: 130 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
