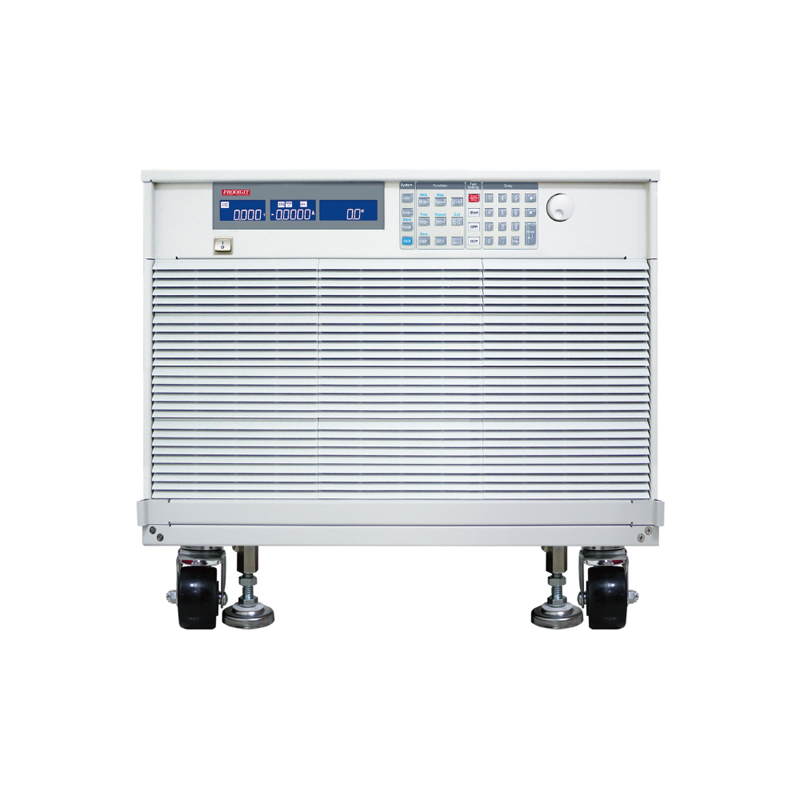

PRODIGIT 34310E Compact High Power DC Electronic Load (1250V, 50A, 10KW)

Power: 10KW

Current: 0 ~ 5A; 0 ~ 50A

Voltage: 0 ~ 1250V

 Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)

Constant Current Mode Range: 5A; 50A

Constant Resistance Mode Range: 30000Ω~25Ω; 25Ω~1.251Ω

Constant Voltage Mode Range: 1250V

Constant Power Mode Range: 1000W; 10000W

Constant Voltage Mode + Constant Current Mode Range: 1250V; 50A

Constant Voltage Mode + Constant Power Mode Range: 1250V; 10000W

Dynamic Mode:

- Timing: 0.010~9.999 / 99.99 / 999.9 / 9999mS

- Current: 0~5A; 5~50A

Measurement

- Voltage Read Back Range (5 Digital): 0~150V; 150~1250V

- Current Read Back Range (5 Digital): 0~5A; 5~50A

- Power Read Back Range: 1000W; 10000W

Short Current: 50A

Power Consumption: 1000Wmax

Dimension (HxWxD): 573x647x766mm

Weight: 130 kg

Temperature: 0~40℃
