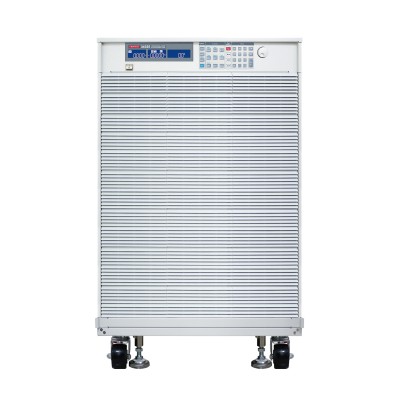

Prodigit 34325A超高功率高电压直流电子负载（25KW，250A，1000V）

Power: 25KW
Current: 0~25A/0~250A
Voltage: 0~1000V
Min.Operation Voltage: 10V@250A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 104%
  Over Voltage Protection (OVP): 104%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 25A/250A
  Resolution: 0.4mA/4mA
  Accuracy: ±0.1%
CR mode:
  Range: 4800~4Ω/4~0.0402Ω
  Resolution: 4.166uS/0.067mΩ
  Accuracy: ±0.2%
CV mode:
  Range: 10~1000V
  Resolution: 16mV
  Accuracy: ±0.05%
CP mode:
  Range: 2500W/25000W
  Resolution: 40mW/400mW
  Accuracy: ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 100V/100~1000V, ±0.025%
  Current : 0 ~ 25A/25~250A, ±0.1%
  Power : 2500W/25000W, ±0.125%
Short circuit current: 250A
Dimension (HxWxD): 1041 x 647 x 766 mm
Weight: 280 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
