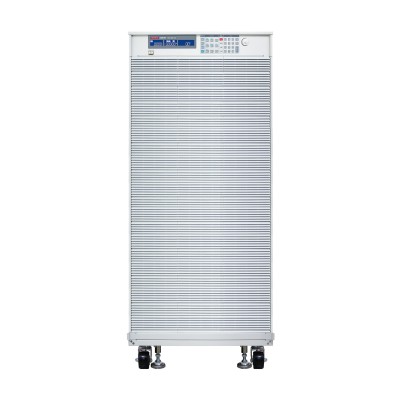

Prodigit 34340A超高功率直流电子负载(40KW,400A,1000V)

  • 制造商: PRODIGIT
    Model: 34340A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Power: 40KW
Current: 0~40A/0~400A
Voltage: 0~1000V
Min.Operation Voltage: 10V@400A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 104%
  Over Voltage Protection (OVP): 104%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 40A/400A
  Resolution: 0.64mA/6.4mA
  Accuracy: ±0.1%
CR mode:
  Range: 3000~2.5Ω/2.5~0.0252Ω
  Resolution: 6.66uS/0.042mΩ
  Accuracy: ±0.2%
CV mode:
  Range: 10~1000V
  Resolution: 16mV
  Accuracy: ±0.05%
CP mode:
  Range: 4000W/40000W
  Resolution: 64mW/640mW
  Accuracy: ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 100V/100~1000V, ±0.025%
  Current : 0 ~ 40A/40~400A, ±0.1%
  Power : 4000W/40000W, ±0.125%
Short circuit current: 400A
Dimension (HxWxD): 1509 x 647 x 766 mm
Weight: 430 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
