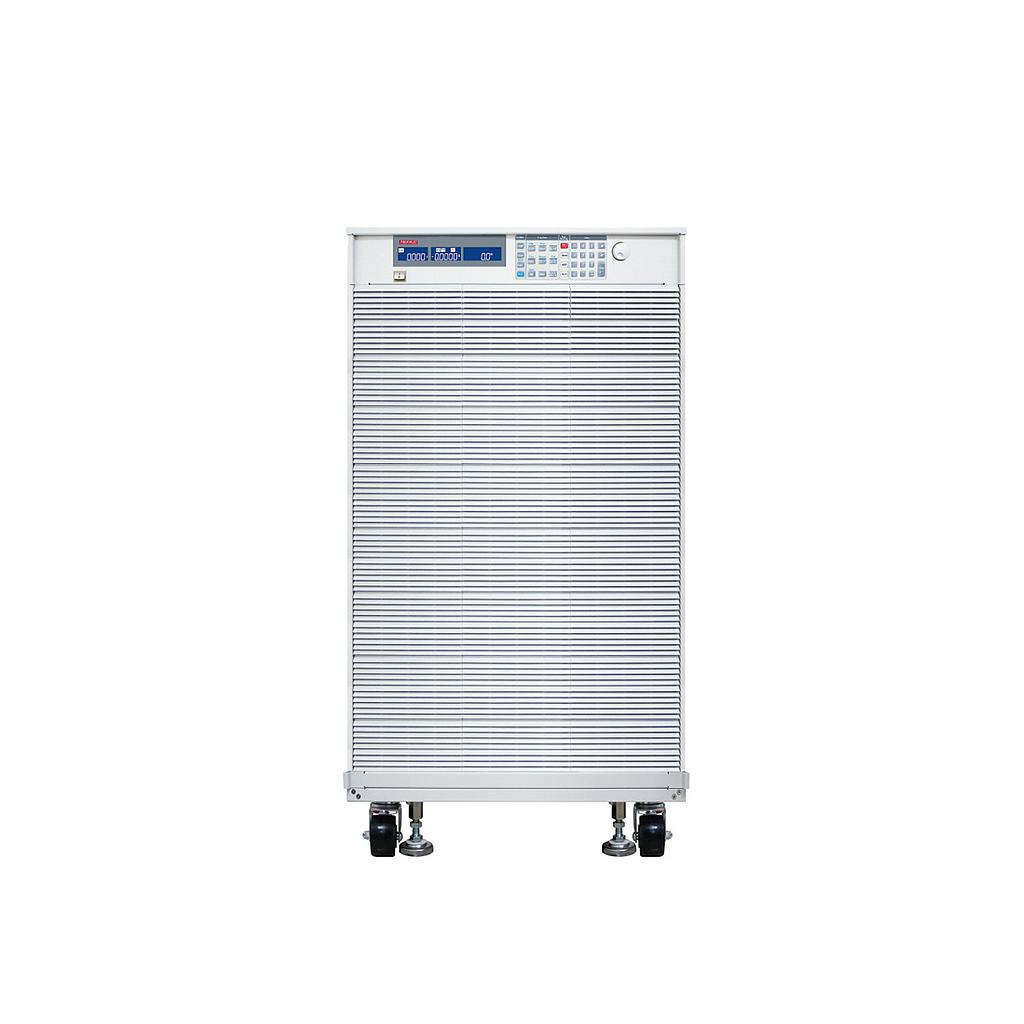

PRODIGIT 34340E Compact High Power DC Electronic Load (40000W, 200A/1250V)

Power: 40KW

Current: 0 ~ 20A; 0 ~ 200A

Voltage: 0 ~ 1250V

Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)

Constant Current Mode Range: 20A; 200A

Constant Resistance Mode Range: 7500Ω~6.25Ω; 6.25Ω~0.315Ω

Constant Voltage Mode Range: 1250V

Constant Power Mode Range: 4000W; 40000W

Constant Voltage Mode + Constant Current Mode Range: 1250V; 200A

Constant Voltage Mode + Constant Power Mode Range: 1250V; 40000W

Dynamic Mode:

- Timing: 0.040~9.999 / 99.99 / 999.9 / 9999mS

- Current: 0~20A; 15~200A

Measurement

- Voltage Read Back Range (5 Digital): 0~125V; 125~1250V

- Current Read Back Range (5 Digital): 0~20A; 20~200A

- Power Read Back Range: 1000W; 40000W

Short Current: 200A

Power Consumption: 3700Wmax

Dimension (HxWxD): 1509x647x766mm

Weight: 430 kg

Temperature: 0~40℃
