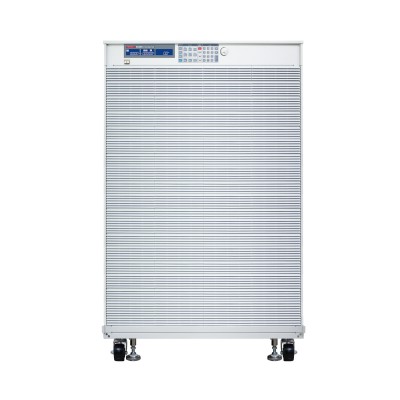

Prodigit 36250A超高功率直流电子负载（50KW，21A / 210A，600V）

Power: 50KW
Current: 0~21A/0~210A
Voltage: 0~600V
Min.Operation Voltage: 10V@210A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 105%
  Over Voltage Protection (OVP): 105%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 0~21A/0~210A
  Resolution: 0.35mA/3.5mA
  Accuracy: ±0.1%
CR mode:
  Range: 8571~2.857Ω/2.857~0.0286Ω
  Resolution: 5.83uS/47.7uΩ
  Accuracy: ±0.2%
CV mode:
  Range: 600V
  Resolution: 10mV
  Accuracy: ±0.05%
CP mode:
  Range: 5KW/50KW
  Resolution: 0.08W/0.8W
  Accuracy: ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 60V/60~600V, ±0.025%
  Current : 0 ~ 21A/21~210A, ±0.1%
  Power : 0~5KW/50KW, ±0.125%
Short circuit current: 210A
Dimension (HxWxD): 1353 x 853 x 766 mm
Weight: 510 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
