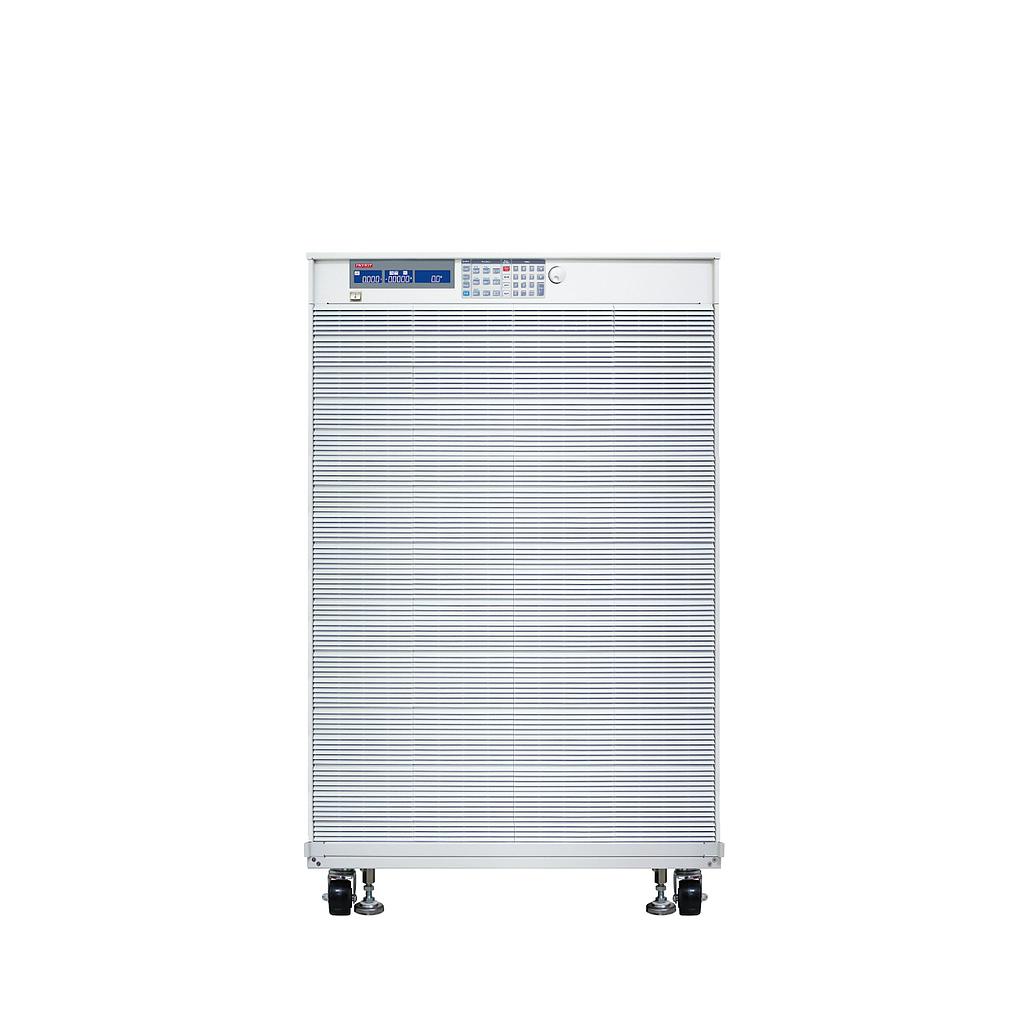

PRODIGIT 36350E Compact High Power DC Electronic Load (1250V, 250A, 50KW)

Power: 50KW

Current: 0~25A/0~250A

Voltage: 0~1250V

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 104%

  Over Voltage Protection (OVP): 104%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~25A/0~250A

  Resolution: 0.42mA/4.2mA

  Accuracy:    ±(0.1% of Setting + 0.2% of Range)

CR mode:

  Range: 5712Ω ~ 4.76Ω/4.76Ω ~ 0.24Ω

  Resolution: 3.5014μS/0.08mΩ

  Accuracy:    ±0.2%

CV modes:

  Range: 1250V

  Resolution: 20mV

  Accuracy:    ±0.05%

CP mode:

  Range: 5000W/50000W

  Resolution: 84mW/850mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 125V/125~1250V, ±0.025%

  Current : 0 ~ 26.25A/26.25~250A, ±0.1%

  Power : 10000W/50000W, ±0.125%

Short circuit current: 250A

Dimension (HxWxD): 1353 x 853 x 766mm

Weight: 510 kg

Optional interface: GPIB, RS284, USB, LAN
