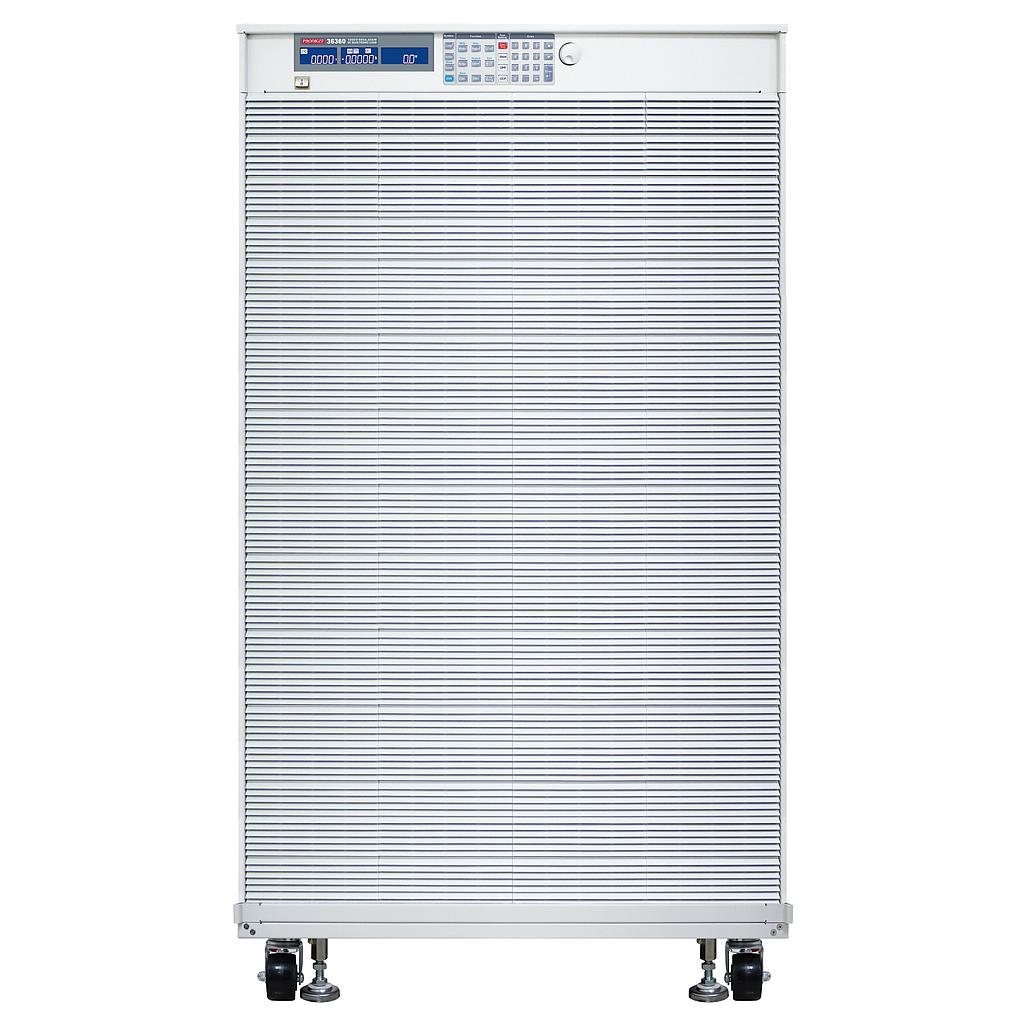

Prodigit 36360A超高功率直流电子负载(60KW,60A / 600A,1000V)
制造商: PRODIGIT Model: 36360A - 报价要求
- 联系
Power: 60KW
Current: 0~60A/0~600A
Voltage: 0~1000V
Min.Operation Voltage: 10V@600A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~60A/0~600A
Resolution: 1mA/10mA
Accuracy: ±0.1%
CR mode:
Range: 2000~1.666Ω/1.666~0.0333Ω
Resolution: 10uS/27.8uΩ
Accuracy: ±0.2%
CV mode:
Range: 10~1000V
Resolution: 16mV
Accuracy: ±0.05%
CP mode:
Range: 6KW/60KW
Resolution: 0.1W/1W
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 100V/100~1000V, ±0.025%
Current : 0 ~ 60A/60~600A, ±0.1%
Power : 0~6KW/60KW, ±0.125%
Short circuit current: 600A
Dimension (HxWxD): 1508 x 853 x 766 mm
Weight: 630 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
