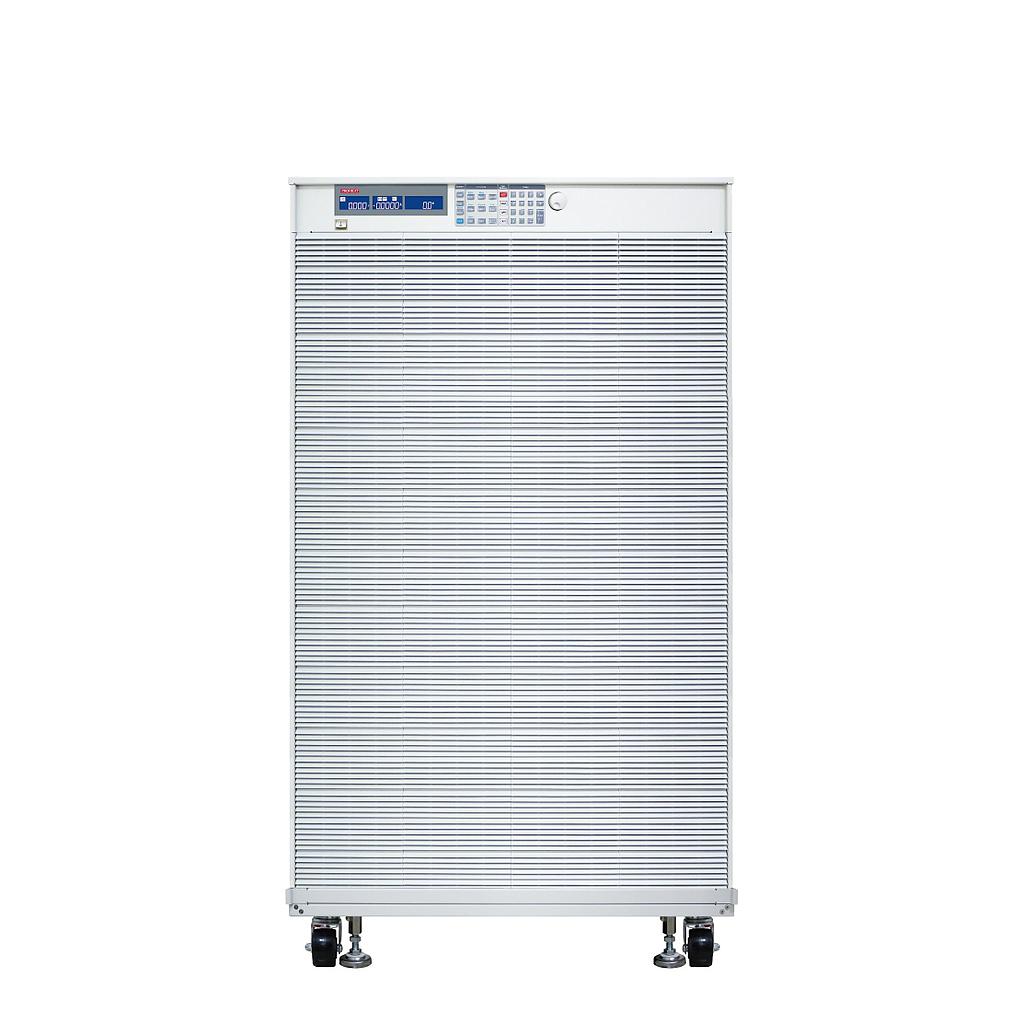

PRODIGIT 36360E Compact High Power DC Electronic Load (1250V, 300A, 60KW)

Power: 60KW

Current: 0~30A/0~300A

Voltage: 0~1250V

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 104%

  Over Voltage Protection (OVP): 104%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~30A/0~300A

  Resolution: 0.42mA/4.2mA

  Accuracy:    ±(0.1% of Setting + 0.2% of Range)

CR mode:

  Range: 5004Ω ~ 4.17Ω/4.17Ω ~ 0.21Ω

  Resolution: 3.9968μS/0.07mΩ

  Accuracy:    ±0.2%

CV modes:

  Range: 1250V

  Resolution: 20mV

  Accuracy:    ±0.05%

CP mode:

  Range: 6000W/60000W

  Resolution: 96mW/960mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 125V/250~1250V, ±0.025 %

  Current : 0 ~ 26.25A/26.25~250A, ±0.1%

  Power : 10000W/60000W, ±0.125%

Short circuit current: 300A

Dimension (HxWxD): 1508 x 853 x 766mm

Weight: 630kg

Optional interface: GPIB, RS296, USB, LAN
