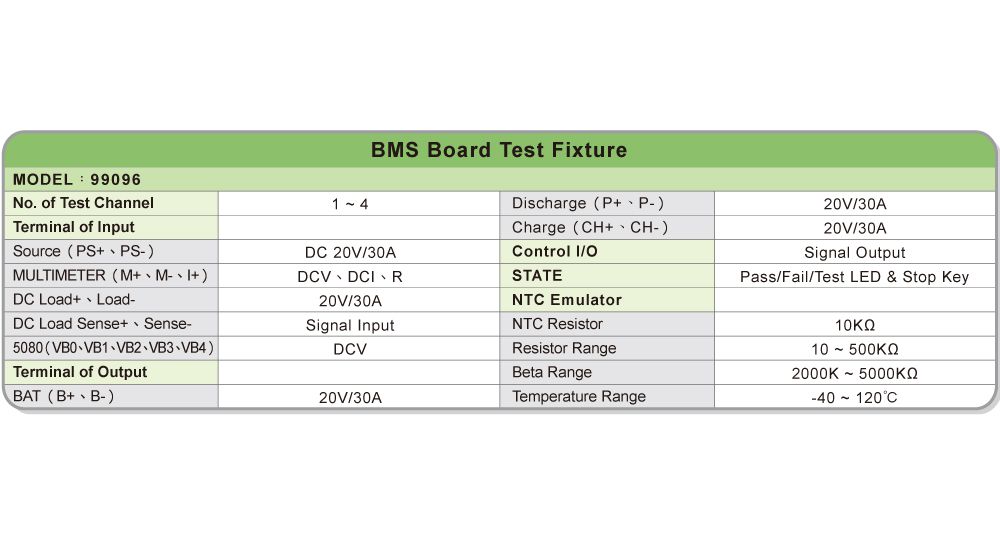

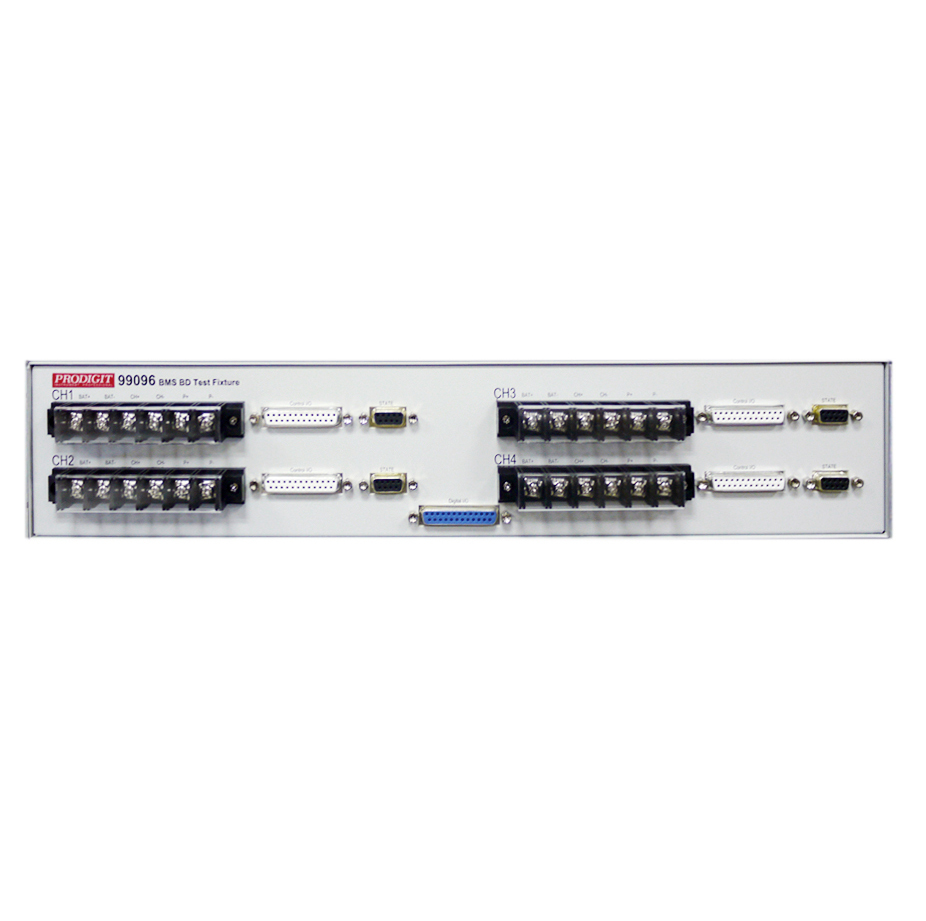

PRODIGIT 99096 BMS Board Test Fixture (20V/30A)

No. of Test Channel:  1-4

Terminal of Input:

- Source (PS+, PS-):  DC 20V/30A

-  MULTIMETER (M+, M-, I+): DCV, DCI, R

- DC Load+, Load-: 20V/30A

- DC Load Sense+, Sense-: Signal Input

Terminal of Output:

- BAT (B+, B-):  20V/30A

- Discharge (P+, P-):  20V/30A

- Charge (CH+, CH-):  20V/30A

Control I/O:  Signal Output

STATE: Pass/Fail/Test LED & stop Key

NTC Emulator : 10kΩ

- NTC  Resistor: 10 - 500KΩ

- Beta Range: 2000K - 5000KΩ

- Temperature Range: -40 - 1200℃
