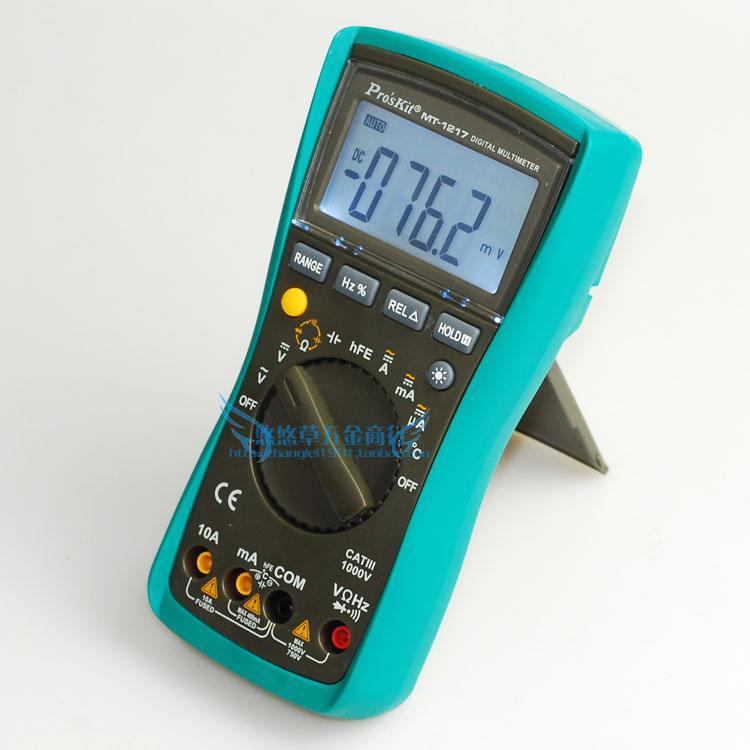

Manufacturer: Proskit
Warranty: 12 Months
DCV : 400mV/4V/40V/400V ±(0.5%+4d), 1000V ±(1.0%+6d)
ACV : 4V/40V/400V ±(0.8%+6d), 750V ±(1.0%+10d)
DCA : 2mA/20mA ±(0.8%+10d), 200mA ±(1.2%+8d), 10A ±(2.0%+5d)
ACA : 20mA ±(1.0%+15d), 200mA ±(2.0%+5d), 10A ±(3.0%+10d)
Resistance: 200Ω ±(0.8%+5d), 2K/20K/200K/2MΩ ±(0.8%+3d)
20MΩ ±(1.0%+25d), 200MΩ ±[5.0%(rdg-10)+30d]
Frequency: 20K Hz ±(3.0%+18d)
Capacitance: 2nF ±(2.5%+20d), 20nF ±(2.5%+20d), 200nF ±(2.5%+20d),
2μF ±(2.5%+20d), 20μF ±(5.0%+30d
Temperature: (-20˚C~400˚C)±1.0%+5d, (400~1000˚C)±(1.5%+15d)
Battery: pin 9V
Continuity with beeper:Yes
Diode test:Yes
Transistor test:Yes
Size: 182x90x46 mm
