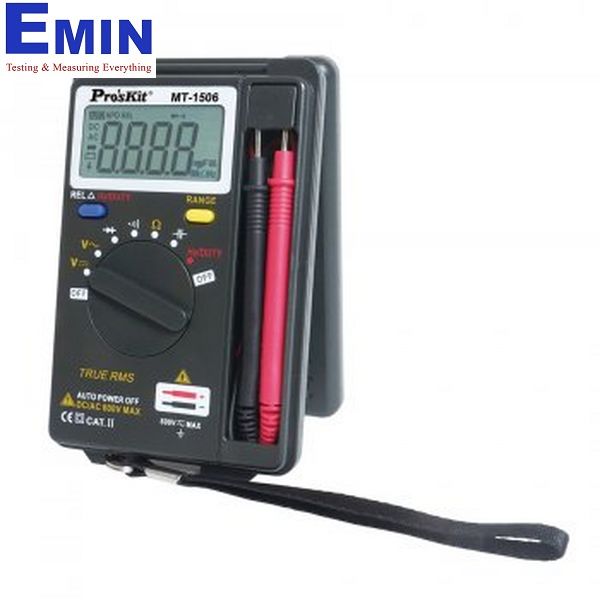

Proskit MT-1506 口袋型真有效值自动电表 (400mV/4/40/400V/600V)

Specifications MT-1506
DCV 400mV,4/40/400V ±(0.5%+4d), 600V ±(1%+4d)
ACV 400mV±(1.5%+6d),
4/40/400V ±(0.8%+6d), 600V ±(1.0%+6d)
Resistance 400Ω ±(0.8%+5d)
4k/40k/400k/4MΩ ±(0.8%+4d), 40MΩ ±(1.2%+5d)
Frequency 100/1000Hz/10k/100k/1MHz/10MHz ±(0.5%+4d)
Capacitance 4nF ±(5%+40d),
40n/400n/4µ/40µ ±(3.5%+8d),
2000µF ±(5%+8d)
Duty cycle 0.1~99.9% ±(0.5%+4d)
Continuity with beeper 50 ±30Ω
Diode test Range: 0 ~ 1.5V Resolution: 1mV
Power source 2 x 1.5V AAA battery (Not included)
Size 4.9 x 3.1 x 0.8"
Individual packing Color box
