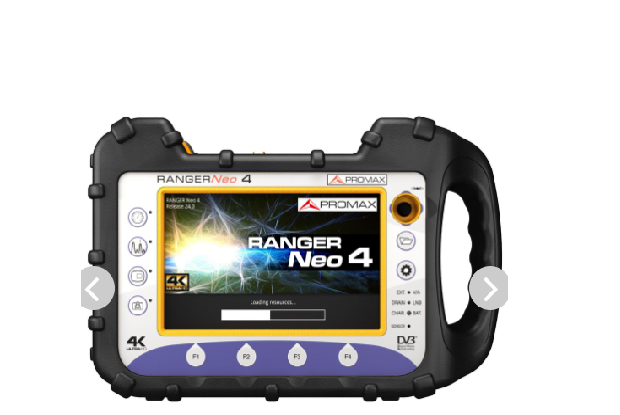

Promax RANGERNeo 4高质量频谱分析仪和场强分析仪

  • 制造商: Promax
    Model: RANGERNeo 4
    来源: United Kingdom
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Manufacturer: Promax

Model:RANGERNeo 4

Origin: England

Warranty: 12 months


DIGITAL STANDARDS:DVB-T, DVB-T2, DVB-T2 lite

                  DVB-T2-MI (Gateway to modulator)

                  DVB-C, DVB-C2

                  DVB-S, DVB-S2, DVB-S2 multistream

                  ISDB-T/Tb

                  DSS, ACM/VCM/CCM

                  DAB, DAB+

                  MPEG-TS

AUDIO CODECS:MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS:MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS:

                Universal RF connector 75 Ω

                ASI-TS input and output

                IPTV input UDP/RTP RJ45 Ethernet 1 Gbps

                HDMI output

                IP input for remote control

                Analogue Video/Audio input

                Common Interface module slot

                1 pps input

                2xUSB for data tranferring and GPS module

SPECTRUM ANALYZER:

  Frequency Margin:From 5 - 1000 MHz (Terrestrial)

                   From 250 - 2500 MHz (Satellite)

  Measurement range:From 10 - 130 dBµV

  Span:Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

  Resolution bandwidths:2 kHz (terrestrial)

                        10, 20, 30, 40, 100, 200 kHz

                        1 MHz

MEASUREMENT MODE (please refer to STANDARDS section)

Frequency Margin:From 5 - 1000 MHz (Terrestrial)

                 From 250 - 2350 MHz (Satellite)

DVB-T COFDM :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

DVB-T2 Base and Lite COFDM: Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets

DVB-C QAM: Power (45 to 115 dBμV), BER, MER, C/N, Link margin

DVB-C2 COFDM: Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets

PAL, SECAM and NTSC: M, N, B, G, I, D, K and L

FM radio :Level measurement

DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

DVB-S2 QPSK, 8PSK, 16/32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin

DSS QPSK :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin


INTERNAL STORAGE:6 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION (via ethernet interface):NetUpdate 4 (free software) + Free and automatic firmware updates

+ User customised channel plans + Measurement reports and screenshots

GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard

DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)

dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)

BATTERY:> 4 h (smart battery)

HARD CASE:Included

Chi tiết

    Datasheet
