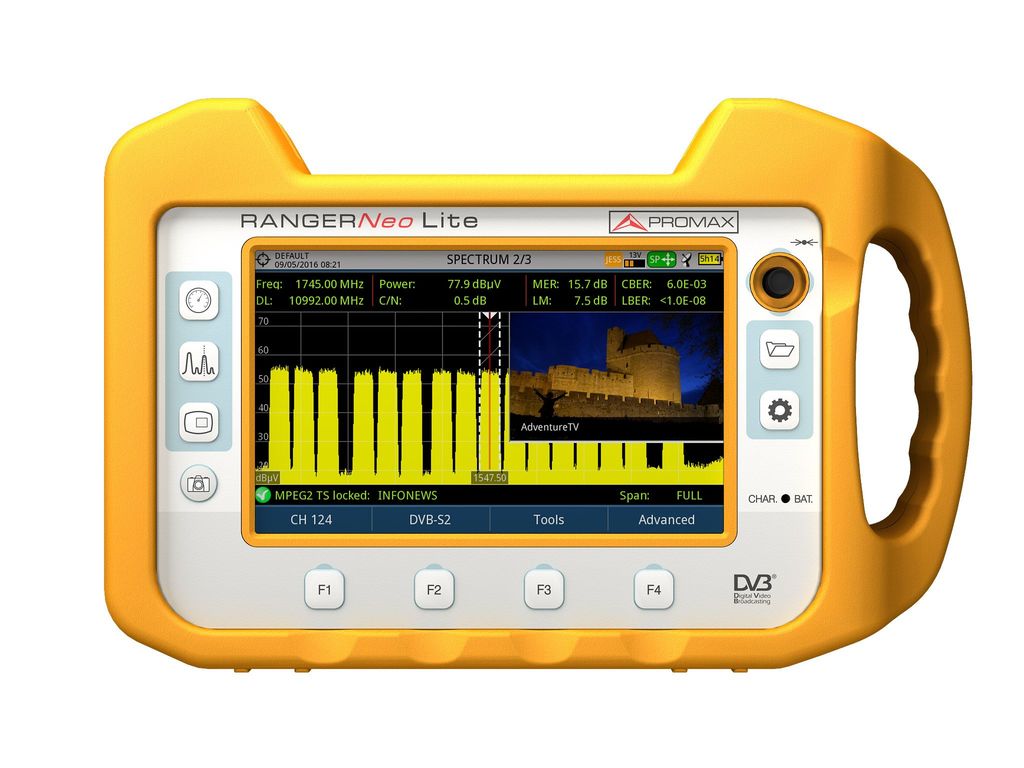

Promax RANGERNeo Lite 多功能数字电视场强仪卫星频谱分析仪

  • 制造商: Promax
    Model: RANGERNeo Lite
    来源: United Kingdom
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Promax

Model:RANGERNeo Lite

Origin: England

Warranty: 12 months


                         DVB-T/T2, DVB-T2 lite

                         STANDARDS DVB-C/C2 DAB, DAB+ (optional) MPEG-TS DVB-T2-MI

                         DVB-S/S2 DAB, DAB+

                         DVB-S2 Multistream


                         DSS, ACM / VCM / CCM

AUDIO CODECS: MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS: MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS:- Universal RF input 75 Ω

                   - HDMI output

                   - IP interface for remote control

                   - Analogue Video/Audio input - IPTV multicast input

                    - 2xUSB (Type-A) for data transfering

FUNCTIONS:Constellation diagram

          LTE ingress test

          Dynamic echoes analysis

          StealthID (instant identification of tuning parameters)

         PLS (Physical Layer Scrambling)

         Screenshots and Datalogger for

         Service recording

         Ultra fast spectrum analyzer (70 ms sweep time

          measurement reports

         Field strength measurement

         Beacon-Flyaways for SNG & VSAT

         Task planner

        4K Frame grabber

        Wideband LNB

        MAX and MIN hold

        WiFi 2.4 GHz

        FM RDS radio measurement and decoding

        LTE 1.8 GHz



Frequency Margin: From 5 - 1000 MHz (Terrestrial)

From 250 - 2500 MHz (Satellite)

Measurement range Span : From 10 - 130 dBµV

                         Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

Resolution bandwidths:100 kHz

MEASUREMENT MODE (please refer to STANDARDS section)

Frequency Margin: From 5 - 1000 MHz (Terrestrial)

                :  From 250 - 2350 MHz (Satellite)

DVB-T COFDM :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

DVB-T2 Base and Lite COFDM: Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets

DVB-C QAM: Power (45 to 115 dBμV), BER, MER, C/N, Link margin

DVB-C2 COFDM: Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets

PAL, SECAM and NTSC: M, N, B, G, I, D, K and L

FM radio :Level measurement

DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

DVB-S2 QPSK, 8PSK, 16/32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin

DSS QPSK :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

INTERNAL STORAGE: 6 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION (via ethernet interface): NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans+ Measurement reports and screenshots


GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard

        DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)

        dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)


HARD CASE: Optional


DAB, DAB+:available

GPS Coverage Analysis:Available

Advanced DAB/DAB+ analyzer:Available

Advanced FM radio analyzer:--

Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm:--

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input:Available

WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input:Available
