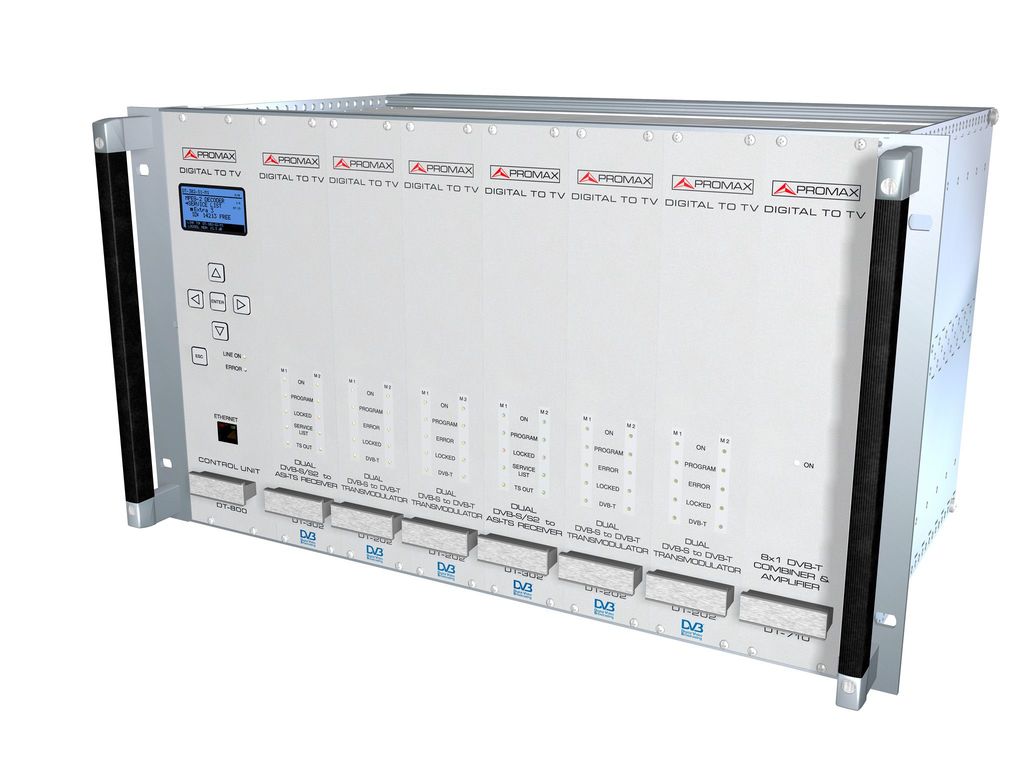

双接收器DVB-S / S2 Promax DT-302(CAM输出,ASI-TS)

  • 制造商: Promax
    Model: DT-302
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

DVB-S/S2 FI input: Type 2 independent DVB-S/S2 FI inputs

Connector: 75 Ω Type-F, Female

Range Frequency: From 950 MHz to 2150 MHz

Input Level: 40 – 110 dBμV

Information: MER of the signal

LNB Power supply

Voltage: OFF, 13 V and 18 V (± 1 V)

Current: < 400 mA

22 kHz Signal: ON, OFF

Voltage: 0.65 V ±0.35 V

Frequency; 22 kHz ± 4 kHz

DVB-S Receiver Parameters

Symbol Rate: 2 – 45 Mbauds

Roll off: 0.35

Code Rate: Automatic (1/2, 2/3, 3/4, 5/6, 7/8)

Spectral Inversion: Automatic (ON, OFF)

DVB-S2 Receiver Parameters

Constellation: QPSK, 8PSK (Auto)

Symbol Rate (QPSK): 2 – 33 Mbauds

Symbol Rate (8PSK): 2 – 30 Mbauds

Roll-off Factor: Automatic (0.20 , 0.25 and 0.35)

Code Rate (QPSK): Automatic (1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 )

Code Rate (8PSK): Automatic (3/5, 2/3, 3/4, 5/6, 8/9, 9/10)

Spectral Inversion: Automatic (ON, OFF)

Decrypting multiples services

Interface: 2 independent Common Interfaces

Maximum number of decrypted services: Depending on the CAM module you use (see DT-902)
