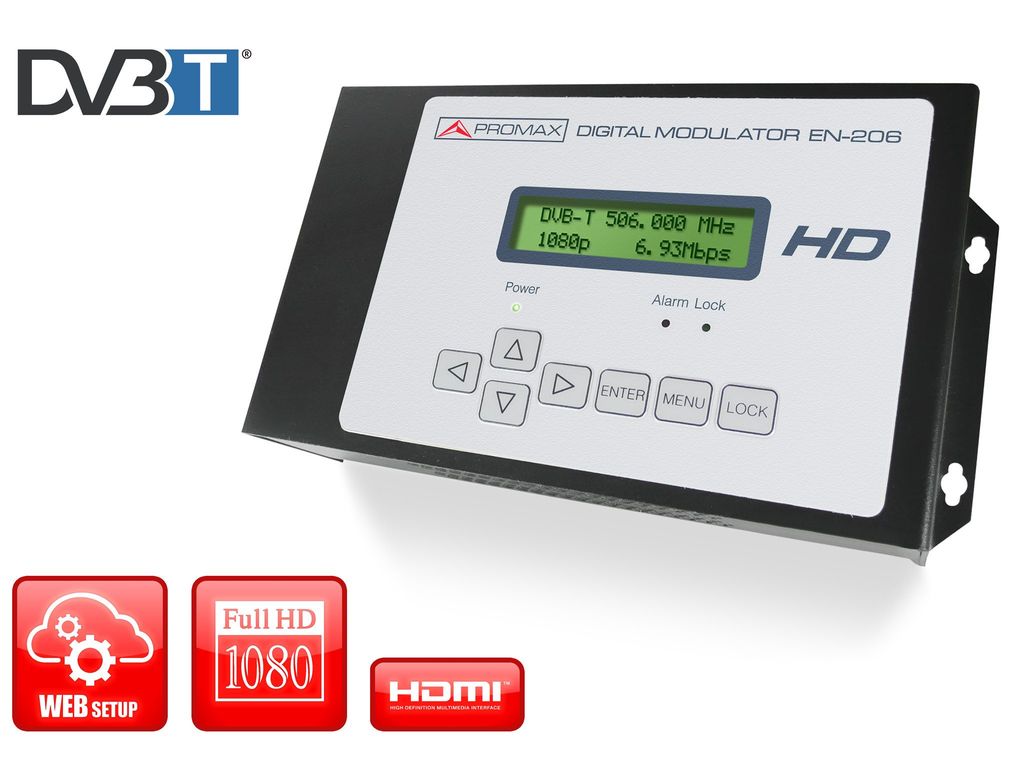

Promax EN-206L高清数字DVB-T调制器

  • 制造商: Promax
    Model: EN-206L
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

HDMI:

- Video

Encoding: MPEG-4 H.264 MP@L 3.0 / 3.1 / 4.0

Interface: HDMI

Resolution: 1920x1080 @30p, 1920x1080@25p, 1280x720 @50p, 1280x720 @59,94p, 1280x720 @60p,

720x576 @25p, 720x480 @30p, 720x480 @60p

Bit rate: De 1 a 18 Mbps

- Audio:

Encoding: MPEG1 Layer II

Interface: HDMI

Sample rate: 48 kHz

Bit rate: 64, 96 ,128, 192, 256, 320 kbps

CVBS:

- Video

Encoding: MPEG-4 H.264 MP@L 3.0

Interface: CVBS

Resolution:

CVBS & S-Video: 720x576 @25p (PAL), 720x576 @50p (PAL), 720x480 @30p (NTSC), 720x480@60p (NTSC)

Bit rate: From 1 to 18 Mbps

- Audio:

Encoding: MPEG1 Layer II

Interface: 1 x Stereo / mono

Sample rate: 48 kHz

Bit rate: 64, 96, 128, 192, 256, 320 kbps

Modulation: DVB-T COFDM

Bandwidth: 6 / 7 / 8 MHz

Constellation: QPSK, 16 QAM, 64 QAM

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

Guard interval: 1/32, 1/16, 1/8, 1/4

MER: ≥31 dB

RF frequency: From 142.5 to 946 MHz (1 kHz step)

RF output level: From -14 to +6 dBm (0.1 dB step)

Power supply: DC 12V (includes power supply)

Dimensions: 183 (W.) x 50 (H.) x 110 (D.) mm

Weight: < 1 kg
